Installing Side Section Rear

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

Apply adhesive on bonding area > Bonding areas (on body side) of the body.
> Application depth 0.5 mm

> 5X00IN21 WORK WITH BODY STRUCTURAL ADHESIVE

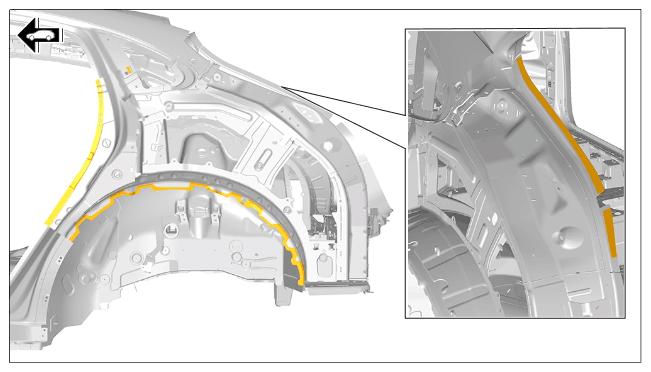

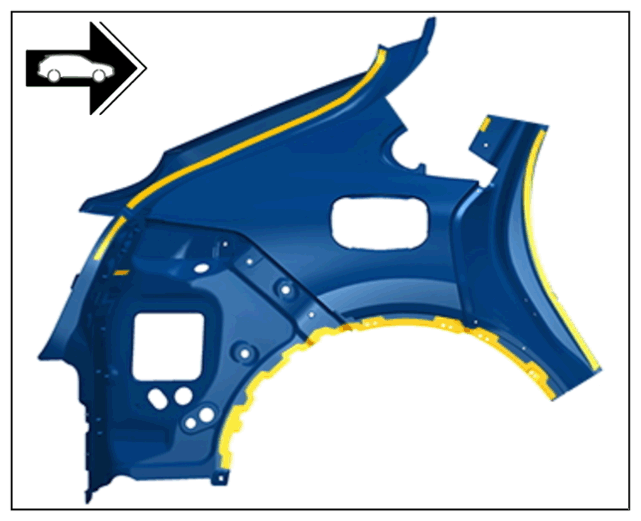

Bonding areas (on body side)
Apply adhesive.
> 5X00IN21 WORK WITH BODY STRUCTURAL ADHESIVE

Side section rear, bonding areas
1. 2.1 Apply adhesive in marked areas > Side section rear, bonding areas on the D-pillar reinforcement.
  > Application depth 0.5 mm
2. 2.2 Also apply a bead of adhesive all around the bonding surface.
  > Application depth 3 mm

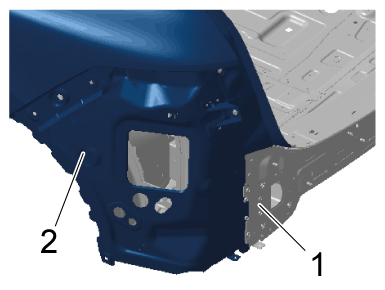

Pun closing panel.ear -1- out slightly and guide side section rear -2- in underneath it.

Closing panel rear
Rivet in side section rear.
1. 4.1 Rivet in side section rear at the side. > BLIND RIVETS 999.190.229.01

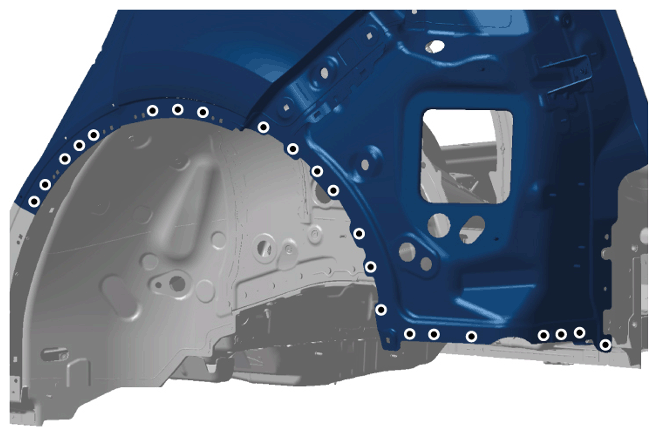

  Blind rivet areas
2. 4.2 Rivet in side section rear front.
  > 5X00IN23 REPLACE PUNCH RIVETS AND PENETRATION JOINTS

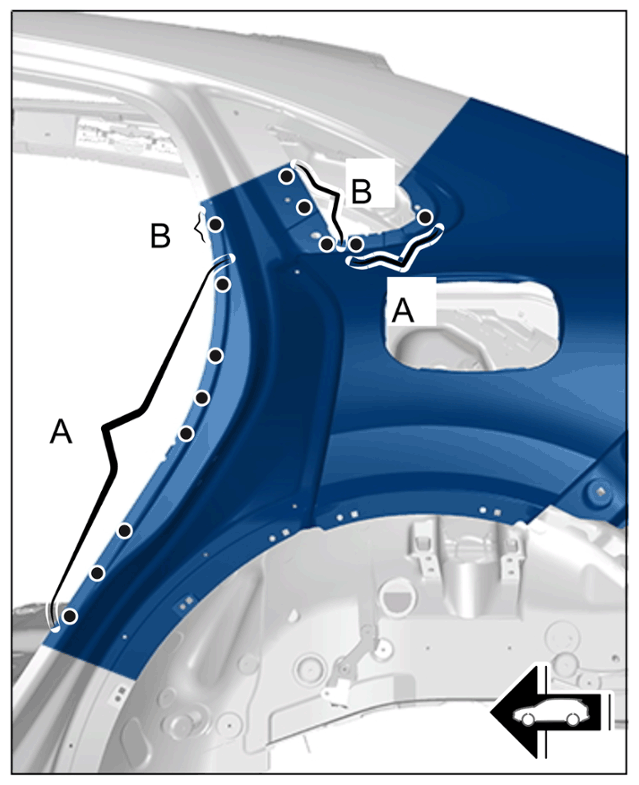

  Riveted area front

  Area -A- > FLOW-FORM RIVETS 9A7.008.473.00

  Area -B- > FLOW-FORM RIVETS 9A7.008.606.00
3. 4.3 Rivet in side section rear rear.
  > 5X00IN23 REPLACE PUNCH RIVETS AND PENETRATION JOINTS

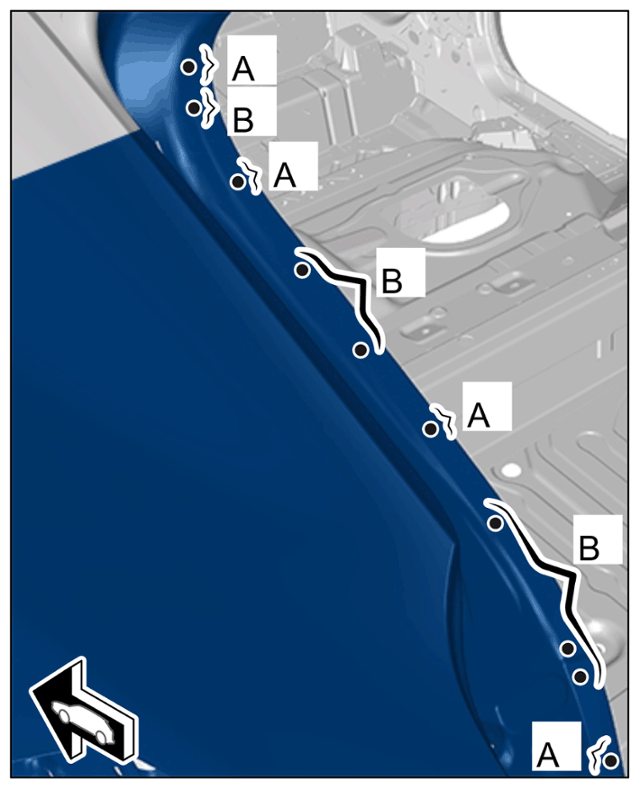

  Riveted area rear

  Area -A- > FLOW-FORM RIVETS 9A7.008.473.00

  Area -B- > FLOW-FORM RIVETS 9A7.008.606.00

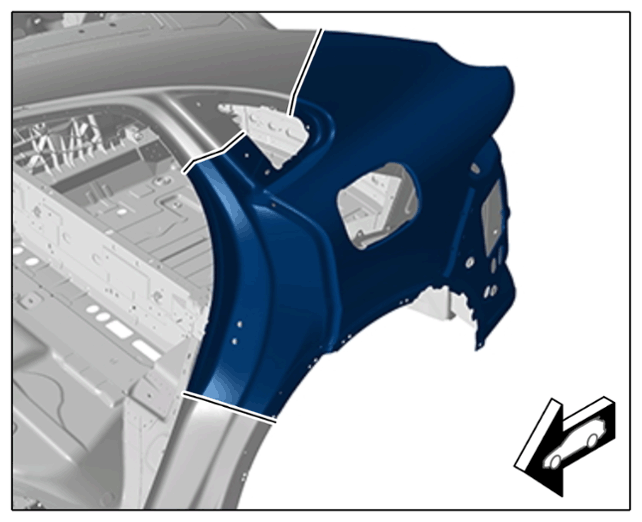

Apply aluminium weld on side section rear > Side section rear.
> 5X00IN10 WELDING ALUMINIUM

Side section rear

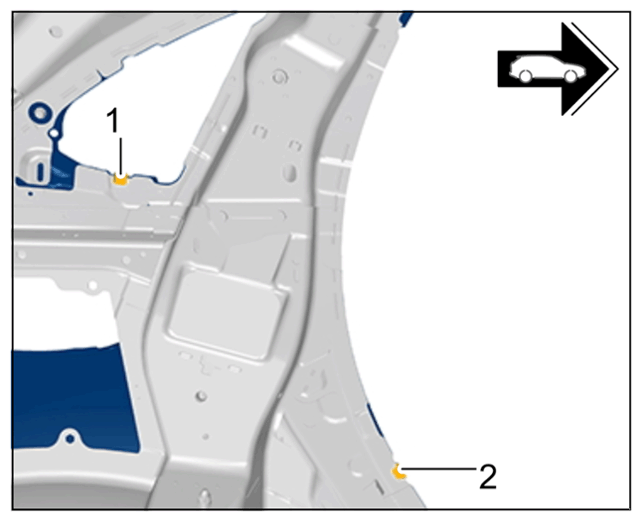

Fold over sheet-metal brackets -1 and 2- using > VAS 6635/5 - crimping pliers .

Sheet metal tabs

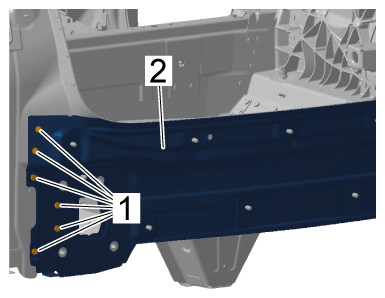

Screw self-tapping screws -1- into closing panel -2- .
> 5X00IN24 SET SELF-TAPPING SCREWS

Self-tapping screws
