Preparing Connection Areas Of The Body For Installing The Rear Side Member (Section)

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Align the sealing surface and connections of the body.
2. Deburr connection points and prepare them for joining.
3. Prepare connection areas > Connection areas  for bonding and riveting.

   > 5X00IN21 WORK WITH BODY STRUCTURAL ADHESIVE

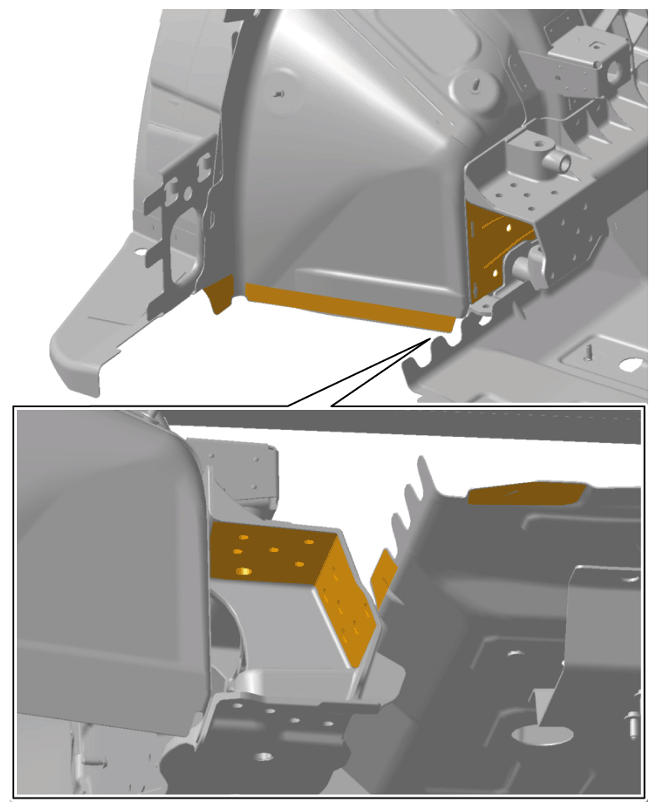

   Connection areas
