Technical Values
TIGHTENING TORQUE SPECIFICATIONS
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|
| Screws for rear side member | Item 2 | Tightening torque | 24 Nm (17.7 ftlb.) | ||
|

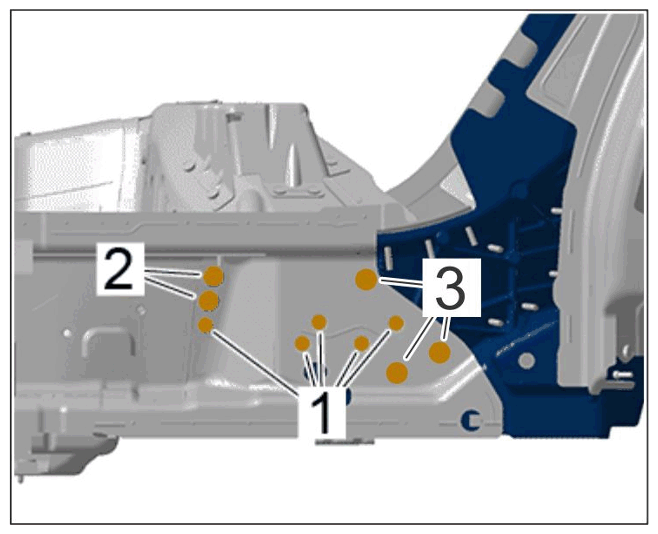

Screws for rear side member |
|||||
| Dimension A | Distance | approx. 37 mm | |||
| Dimension A | Distance | approx. 120 mm | |||
| Dimension A | Distance | approx. 14 mm | |||
| Drill bit | Diameter | 6.6 mm | |||
| Applying adhesive | Spread out evenly | Application depth | 0.5 mm | ||
| Applying adhesive | Spread out evenly | Application depth | 0.5 mm | ||
| Applying adhesive | Spread out evenly | Application depth | 0.5 mm | ||
| Adhesive bead | Application depth | 3 mm | |||
| Drill bit | Diameter | 6.6 mm | |||
| Applying adhesive | Application depth | 0.5 mm | |||
| Applying adhesive | Application depth | 0.5 mm | |||
| Applying adhesive | Application depth | 3 mm | |||
| Drill bit | Diameter | 6.6 mm | |||
| Applying adhesive | Application depth | 0.5 mm | |||
| Applying adhesive | Application depth | 0.5 mm | |||
| Applying adhesive | Application depth | 3 mm | |||
| Drill bit | Diameter | 6.6 mm | |||
| Applying adhesive | Application depth | 0.5 mm | |||
| Applying adhesive | Application depth | 0.5 mm | |||
| Applying adhesive | Application depth | 3 mm | |||
| Drill bit | Diameter | 6.6 mm | |||
| Applying adhesive | Application depth | 0.5 mm | |||
| Applying adhesive | Application depth | 0.5 mm | |||
| Applying adhesive | Application depth | 3 mm | |||
| Applying adhesive | Application depth | 0.5 mm | |||
| Applying adhesive | Application depth | 0.5 mm | |||
| Applying adhesive | Application depth | 3 mm | |||
| Drill bit | Diameter | 6,6 mm | |||
| Applying adhesive | Spread out evenly | Application depth | 0.5 mm | ||
| Applying adhesive | Spread out evenly | Application depth | 0.5 mm | ||
| Applying adhesive | Application depth | 3 mm | |||
| Applying adhesive | Spread out evenly | Application depth | 0.5 mm | ||
| Applying adhesive | Spread out evenly | Application depth | 0.5 mm | ||
| Applying adhesive | Application depth | 3 mm | |||
