Installing Seat Cross Member
- Fit in seat cross member and secure it to the body.
Information
- Apply adhesive evenly over the entire bonding surface.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.
- Apply adhesive on joint areas > Joint areas
of the body. > Application depth 0.5 mm
Use body structural adhesive.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

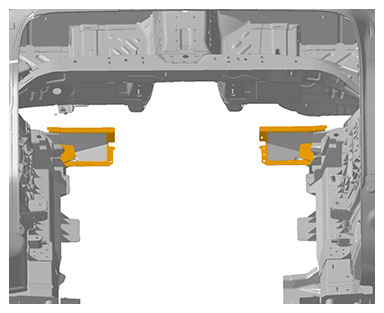

Joint areas
Information
- Apply adhesive evenly over the entire bonding surface.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.
- Apply adhesive in the marked areas > Bonding areas
on the seat cross member. > Application depth 0.5 mm
Use body structural adhesive.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
Bonding areas
- 3.1 Also apply a bead of adhesive all around the bonding surface. > Application depth 3 mm
- Rivet in seat cross member > Rivet area.
> BLIND RIVET 999.190.229.01
Rivet area

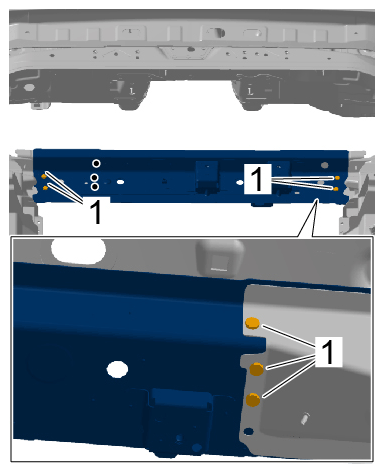

- Screw in self-tapping screws -1-
.
> 5X00IN24 SETTING SELF-TAPPING SCREWS
Self-tapping screws
