Installing Closing Panel
- Install closing panel and check that it fits perfectly.
Information
- Apply adhesive evenly over the entire bonding surface.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.
- Apply adhesive on joint areas > Joint areas
of the body. > Application depth 0.5 mm
Use body structural adhesive.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
Joint areas
Information
- Apply adhesive evenly over the entire bonding surface.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.

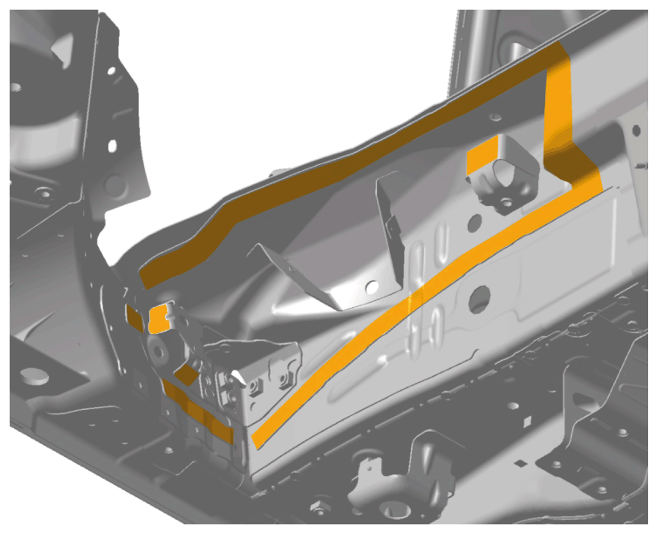

- Apply adhesive in the marked areas > Bonding areas
on the closing panel. > Application depth 0.5 mm
Use body structural adhesive.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
Bonding areas
- 3.1 Also apply a bead of adhesive all around the bonding surface. > Application depth 3 mm

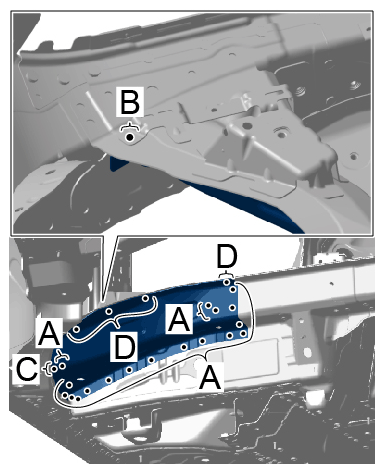

- Rivet in closing panel in areas -A. B. C and D-
.
Areas -A- : > BLIND RIVET999.190.229.01
Area -B- : > BLIND RIVET 999.190.227.01
Area -C- : > BLIND RIVET 999.190.230.01
Areas -D- : > FLOW-FORM RIVET 9A7.008.606.00
Rivet areas
