Removing Rear Side Member

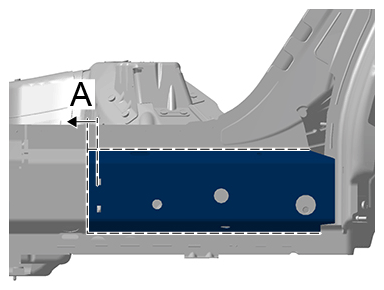

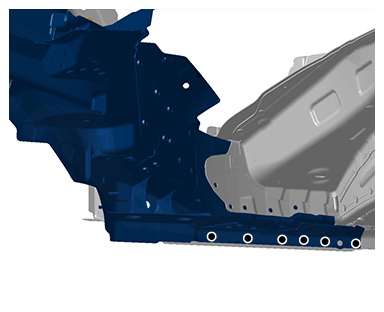

- Mark and make cut -A-
on the inner side member.
> Distance approx. 14 mm
Separation points
Information
- Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

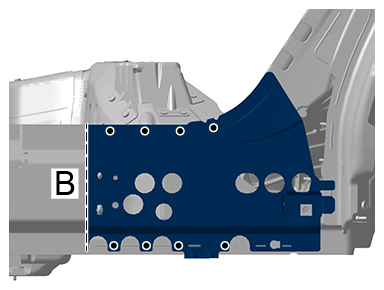

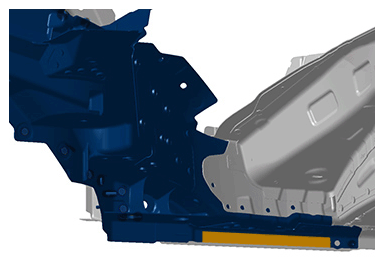

- Mark and make cut -B-
on the door sill reinforcement.
Cut

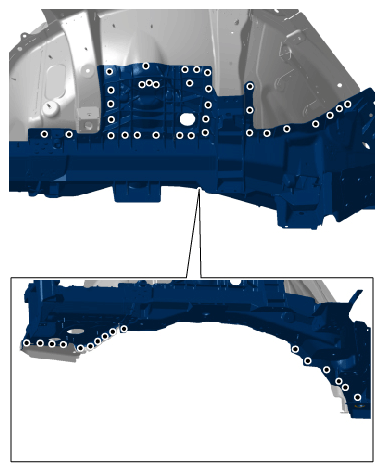

- Drill out spotwelds > Spotwelds.
Spotwelds
- Remove door sill reinforcement.
- Disconnect connection points.
- 5.1

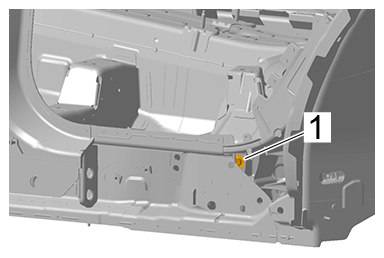

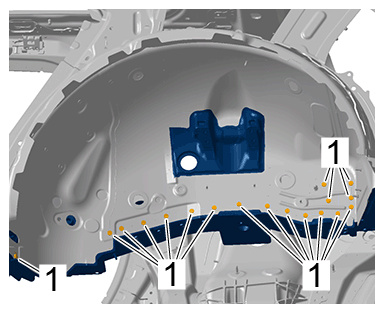

Unscrew self-tapping screws -1-
.
Self-tapping screws
Self-tapping screws
Self-tapping screws
Self-tapping screws
- 5.2
Unscrew and remove screws -2-
.
Screws
Information
- Tapping with a hammer will break the thread in the cast component. As a result, the self-tapping screws in the inner side member will fall down.
- 5.3

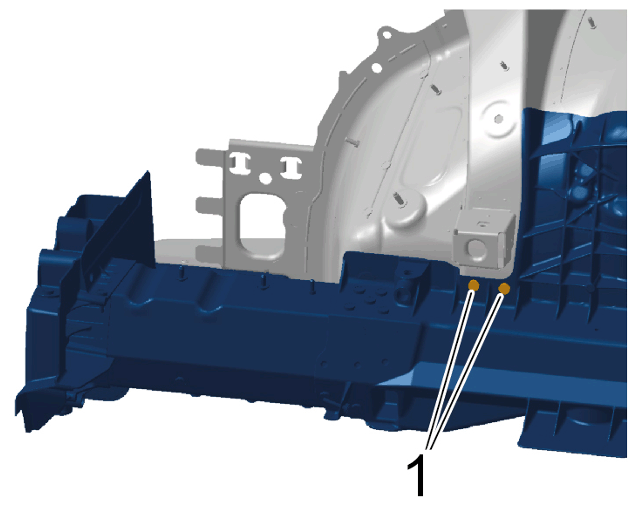

Use a hammer to tap against the tips of the self-tapping screws -1-
.
Self-tapping screws
- 5.4 Tap self-tapping screws through.
- 5.5
Remove all self-tapping screws -1-
from the inner side member using a magnet.
Inner side member

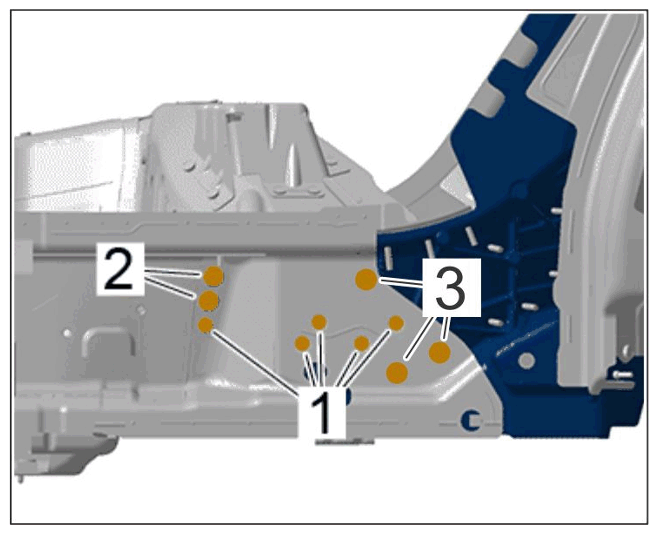

- 5.6
Remove punch rivets using > VAS 852 001 - body dent removal system, aluminium
and > VAS 6790 - compact booster
.
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS
Rivet areas
Rivet area

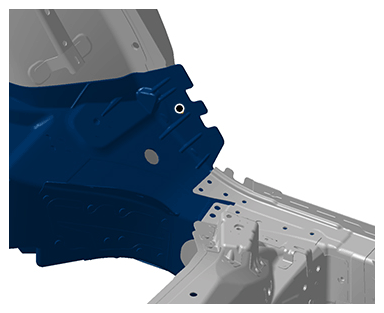

- 5.7
Drill out spotwelds.
Spotwelds

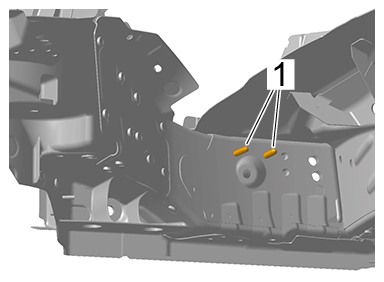

- 5.1

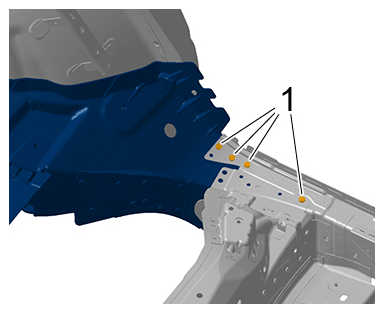

Unscrew self-tapping screws -1-
.

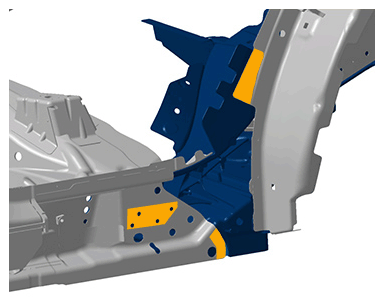

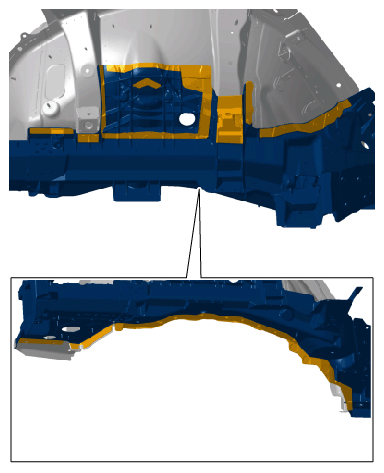

- Heat bonding areas > Bonding areas
using > V.A.G 1416 - hot-air blower
.
Bonding areas
- Heat bonding area > Bonding area
using > V.A.G 1416 - hot-air blower
.
Bonding area
- Heat bonding areas > Bonding areas
using > V.A.G 1416 - hot-air blower
.
Bonding areas
- Guide rear side member out to the rear.
