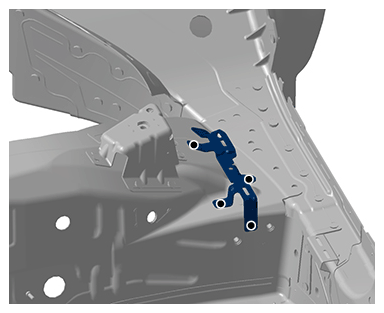

Removing Holder
- Remove punch rivets using > VAS 852 001 - Body Dent Removal System. Aluminium
and > VAS 6790 - Compact Booster
.
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS
Rivet area
Information
- Tapping with a hammer will break the thread in the cast component. As a result, the self-tapping screws in the inner side member will fall down.
- Remove holder.

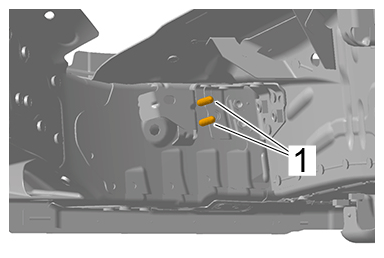

- Use a hammer to tap against the tips of the self-tapping screws -1-
.
Self-tapping screws
- Tap self-tapping screws through.
