Preparing Connection Areas Of Body For Installing Rear Side Member

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Align the sealing surfaces and connections of the body.
2. De-burr connection areas and prepare for joining.

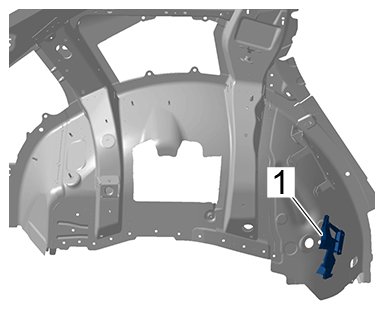

3. Remove remaining pieces of the bulkhead part -1-  .

   Bulkhead part

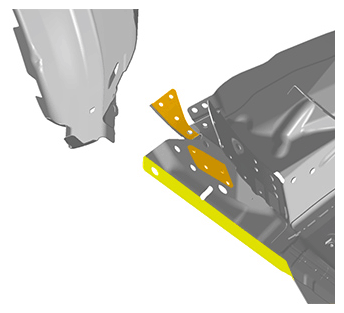

4. Prepare connection areas > Joint  areas for joining.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

   Joint areas

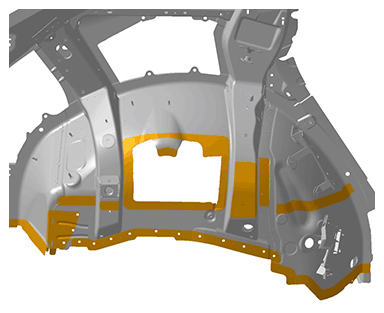

5. Prepare connection areas > Joint areas  for joining.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

   Joint areas

   Yellow	Bonding and resistance spot-welding > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
   C rang =	Bonding and riveting > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
