Preparing Connection Areas Of Body For Installing Inner Side Member

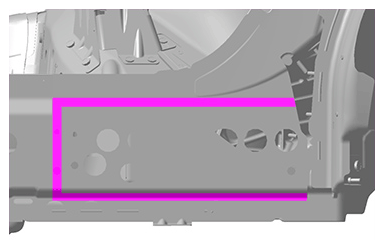

  1. Prepare connection areas > Welding areas  for welding.
    G16140105

    Welding areas

    Magenta Applying full weld
