Installing Inner Side Member

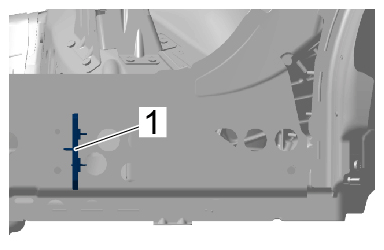

  1. Install new bulkhead part -1-  .
    G16140106

    Bulkhead part

  2. Install door sill reinforcement and check that it fits perfectly.

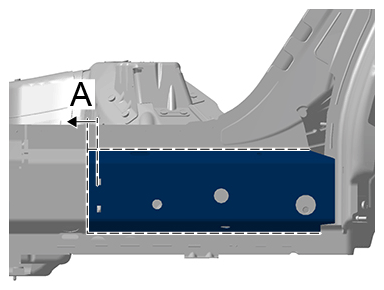

  3. Apply a full weld to the inner side member > Welded joints.
    G16140107

    Welded joints
