Installing Holder
- Fit in holder and secure it to the body.

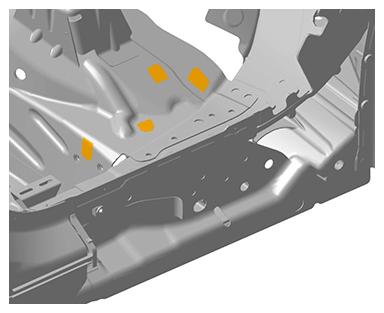

- Apply adhesive on joint areas > Joint areas
of the body.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
Joint areas
- Apply adhesive on holder > Joint areas.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
Joint areas

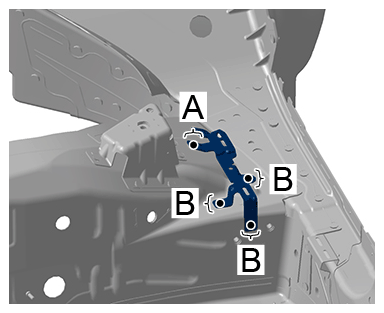

- Rivet in holder in areas -A and B-
.
Area -A- .: > BLIND RIVET 999.190.229.01
Areas -B- : > BLIND RIVET 999.190.227.01
Rivet areas
