Installing Door Sill Reinforcement

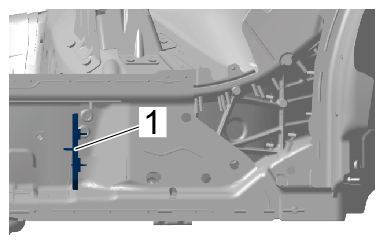

- Install new bulkhead part
Bulkhead part
Information
- Apply adhesive evenly over the entire bonding surface.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.

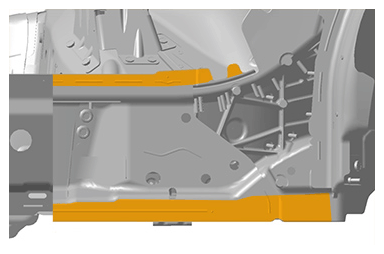

- Apply adhesive on joint areas > Bonding areas
of the body. > Application depth 0.5 mm
Use body structural adhesive.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
Bonding areas
Information
- Apply adhesive evenly over the entire bonding surface.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.

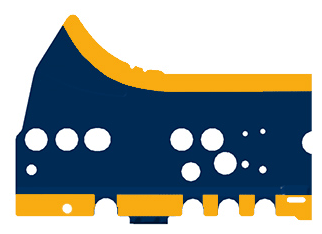

- Apply adhesive in the marked areas > Bonding areas
on the door sill reinforcement. > Application depth 0.5 mm
Use body structural adhesive.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
Bonding areas
- 3.1 Also apply a bead of adhesive all around the bonding surface. > Application depth 3 mm
- Install door sill reinforcement and check that it fits perfectly.

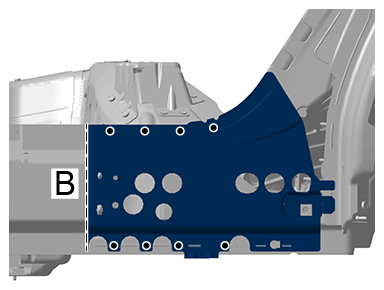

- Resistance spot-weld the door sill reinforcement > Spotwelds.
Spotwelds
- Apply a full weld to the door sill reinforcement > Spotwelds.
Spotwelds
