Installing Closing Panel Connecting Piece
- Fit in closing panel connecting piece and secure it to the body.
Information
- Apply adhesive evenly over the entire bonding surface.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.

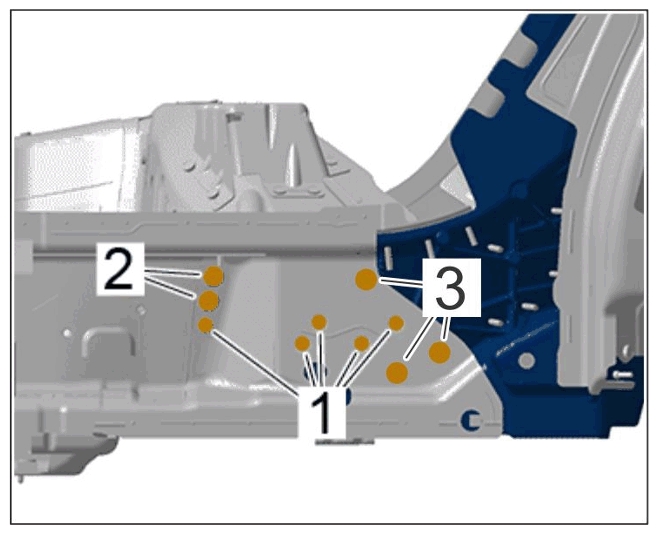

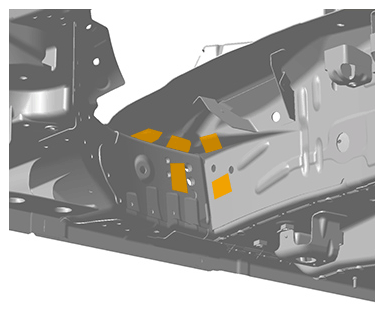

- Apply adhesive on joint areas > Bonding areas
of the body. > Application depth 0.5 mm
Use body structural adhesive.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
Bonding areas
Information
- Apply adhesive evenly over the entire bonding surface.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.

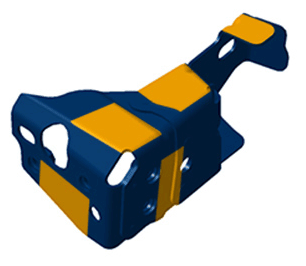

- Apply adhesive on closing panel connecting piece > Bonding areas.
> Application depth 0.5 mm
Bonding areas
- 3.1 Also apply a bead of adhesive all around the bonding surface. > Application depth 3 mm

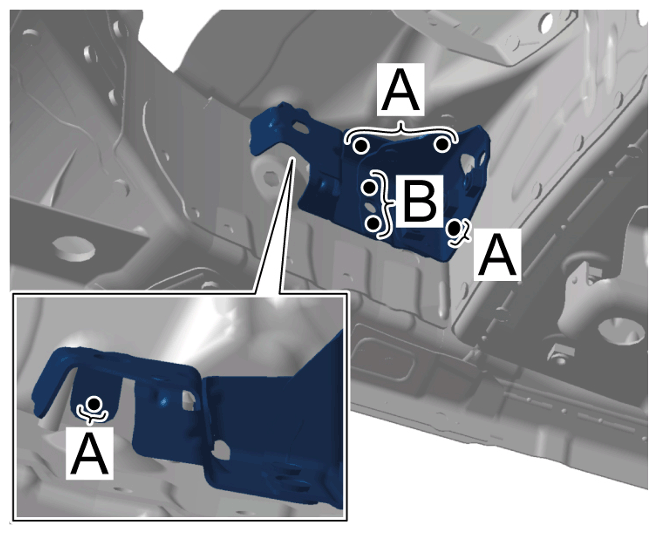

- Rivet in closing plate connecting piece in areas -A and B-
.
Areas -A- : > BLIND RIVET999.190.229.01
Area -B- : > BLIND RIVET 999.190.230.01
Rivet areas
- Screw in screws -2-
and tighten to > Tightening torque 24 Nm (17.7 ftlb.)
.
Screws
