Removing Rear Cross Member

  1. Remove punch rivets -A-  and -B-  using > VAS 852 001 - aluminium body dent removal system  and > VAS 6790 - compact booster  .

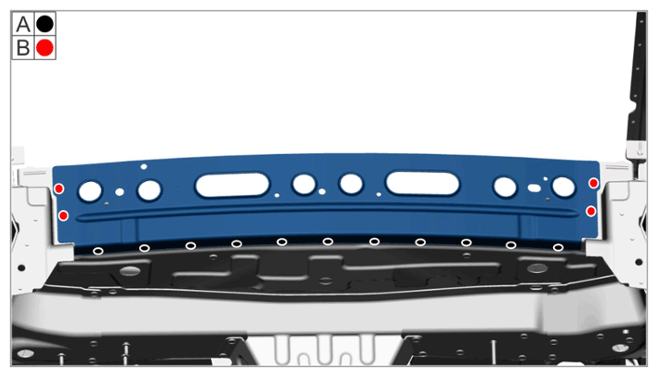

    G16139972

    Punch rivets

  2. Loosen bonding areas. > V.A.G 1416 - Hot-air blower

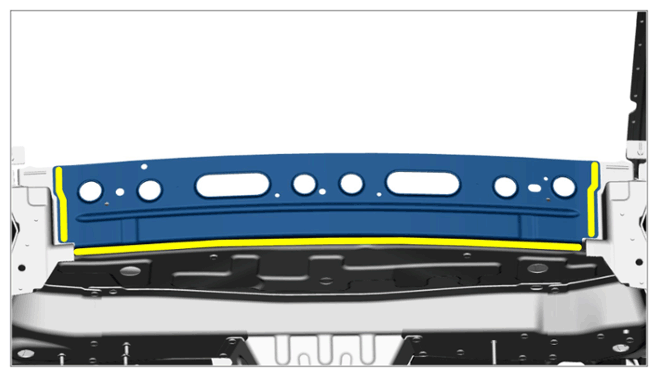

    G16139973

    Bonding areas

  3. Remove rear cross member.
