Preparing Connection Areas Of The Body For Installing The Rear Cross Member

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process c an only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Align contact surfaces and connections of the body.
2. De-burr connection points and prepare them for joining.
3. Prepare connection areas of the bodywork in the marked areas for gluing and riveting.

   > 5X00IN21 APPLYING BODY STRUCTURAL ADHESIVE

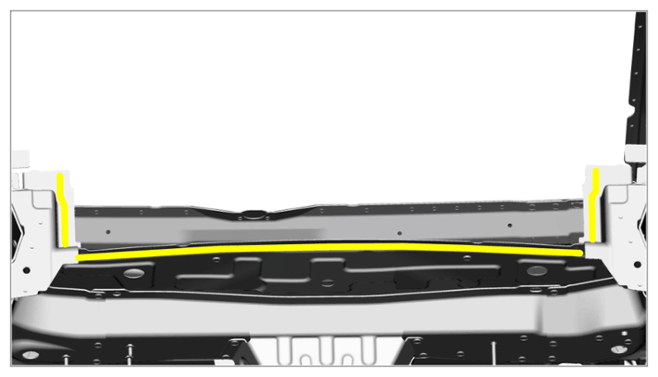

   Bonding areas (on body side)
