WM, 53305530 Replacing D-Pillar Reinforcement: Tools

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G16139867

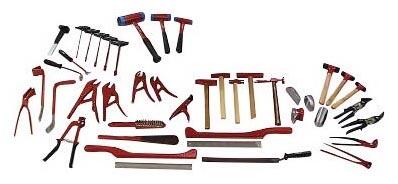

Aluminium tool set General workshop equipment > V.A.G 2010/2A
G16139868
Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G16139869
Measuring and straightening system General workshop equipment > VAS 811 017
G16139870
Measuring system Vehicle-specific workshop equipment > VAS 811 019
G16139871
Resistance spot-welding equipment General workshop equipment > VAS 6755
G16139872
Resistance spot-welding equipment General workshop equipment > VAS 6545A
G16139873

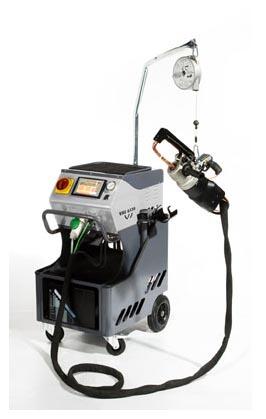

Resistance spot-welding equipment General workshop equipment > VAS 6530A
G16139874
Resistance spot-welding equipment General workshop equipment > VAS 821 101
G16139875
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G16139876
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G16139877
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G16139878
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G16139879
aluminium weld wire 2 kg Accessory > V.A.G 2001/2
G16139880
aluminium weld wire 7 kg Accessory > V.A.G 2001/1
G16139881
Zinc Romax weld wire 5 kg Accessory > V.A.G 1866/1
Zinc Romax weld wire 15 kg Accessory > V.A.G 1866
Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G16139882
Mobile extraction system, aluminium General workshop equipment > VAS 6572/2
G16139883
Extraction system, steel General workshop equipment > VAS 6571/1
G16139884
Compact Booster Vehicle-specific workshop equipment > VAS 6790
G16139885
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G16139886
Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G16139887
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G16139888
Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G16139889
Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G16139890
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G16139891
Extension Vehicle-specific workshop equipment > VAS 6792/2
G16139892
Extension Vehicle-specific workshop equipment > VAS 6792/28
G16139893
Crimping pliers set, 4-piece Vehicle-specific workshop equipment > VAS 6635
G16139894
Crimping pliers Vehicle-specific workshop equipment > VAS 6635/5
G16139895
Spot-weld remover General workshop equipment > VAS 882 001
G16139896
Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G16139897

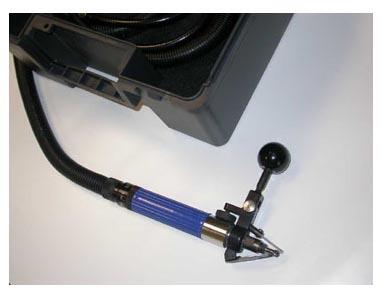

Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G16139898
Body saw General workshop equipment > VAS 882 003

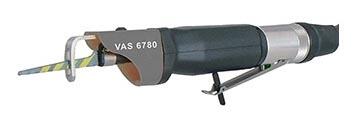

Body saw General workshop equipment > VAS 6780
G16139899
Body saw General workshop equipment > VAS 6598A
G16139900
Vibrating knife Vehicle-specific workshop equipment > V.A.G 1561B
G16139901
100° countersink Vehicle-specific workshop equipment > VAS 6957
G16139902
FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G16139903
Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G16139904
Brush spotlight set General workshop equipment > VAS 6446A
Spray band Accessory > VAS 6446/10
Spray band Accessory > VAS 6446/11
Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G16139905
Compressed-air gun General workshop equipment > VAS 6648
G16139906
Hand-cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G16139907

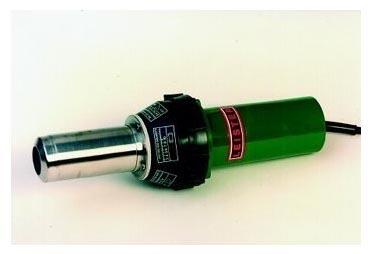

Hot-air blower General workshop equipment > V.A.G 1416
G16139908

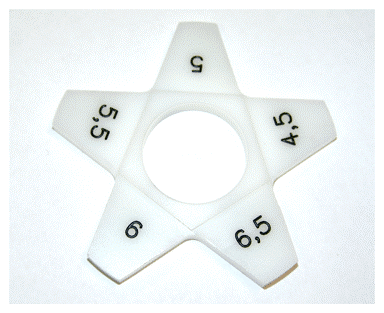

Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G16139909
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G16139910

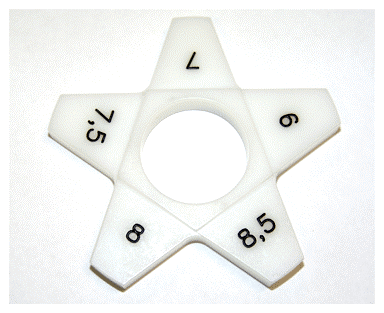

Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G16139911
