WM, 53245501 Replacing Rear Boot Floor Plate (Section): Tools

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G16139746

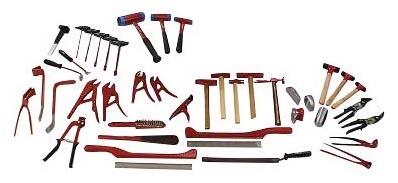

Aluminium tool set General workshop equipment > V.A.G 2010/2A
G16139747
Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G16139748
Measuring and straightening system General workshop equipment > VAS 811 017
G16139749
Measuring system Vehicle-specific workshop equipment > VAS 811 019
G16139750
Resistance Spot Welder General workshop equipment > VAS 6755
G16139751
Resistance Spot Welder General workshop equipment > VAS 6545A
G16139752

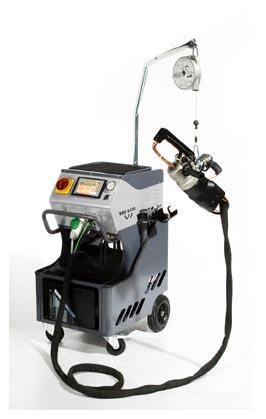

Resistance Spot Welder General workshop equipment > VAS 6530A
G16139753
Resistance Spot Welder General workshop equipment > VAS 821 101
G16139754
Welding and brazing system, MIG/IMAG General workshop equipment > VAS 6741
G16139755
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G16139756
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G16139757
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G16139758
Welding and brazing system, ALU/MIG/MAG General workshop equipment > VAS 6388A
G16139759
Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G16139760
Mobile extraction system, aluminium General workshop equipment > VAS 6572/2
G16139761
Mobile extraction system, steel General workshop equipment > VAS 6571/1
G16139762
Compact Booster Vehicle-specific workshop equipment > VAS 6790
G16139763
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G16139764
Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G16139765
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G16139766
Supplement set for live nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G16139767
Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G16139768
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G16139769
Extension Vehicle-specific workshop equipment > VAS 6792/2
G16139770
Extension Vehicle-specific workshop equipment > VAS 6792/28
G16139771
Crimping pliers set, 4-piece Vehicle-specific workshop equipment > VAS 6635
G16139772
Crimping pliers Vehicle-specific workshop equipment > VAS 6635/5
G16139773
Spot-weld remover General workshop equipment > VAS 882 001
G16139774
Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G16139775

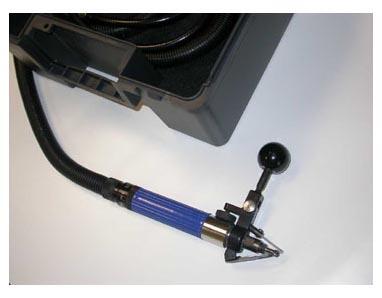

Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G16139776

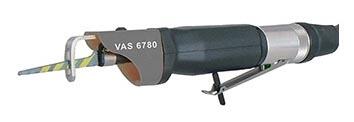

Body saw General workshop equipment > VAS 6780
G16139777
Body saw General workshop equipment > VAS 6598A
G16139778
Electric cutter Vehicle-specific workshop equipment > V.A.G 1561B
G16139779
100° countersink Vehicle-specific workshop equipment > VAS 6957
G16139780
FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G16139781
Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G16139782
Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G16139783
Compressed-air gun General workshop equipment > VAS 6648
G16139784
Hand cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G16139785

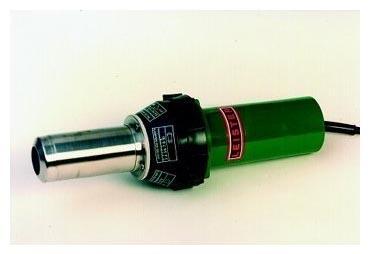

Hot-air blower General workshop equipment > V.A.G 1416
G16139786

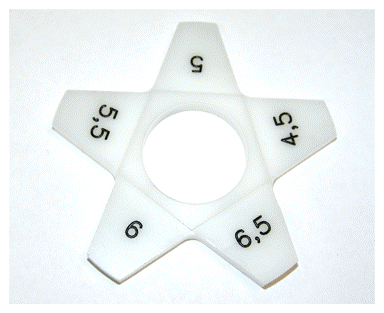

Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G16139787
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G16139788

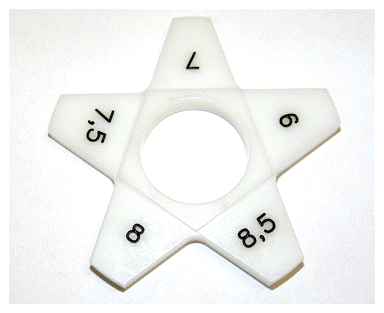

Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G16139789
