WM, 530955 Replacing Lock Carrier: Tools

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G16139501

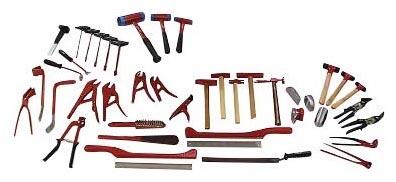

Aluminium tool set General workshop equipment > V.A.G 2010/2A
G16139502
Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G16139503
Measuring and straightening system General workshop equipment > VAS 811 017
G16139504
Measuring system Vehicle-specific workshop equipment > VAS 811 019
G16139505
Resistance Spot Welder General workshop equipment > VAS 6755
G16139506
Resistance Spot Welder General workshop equipment > VAS 6545A
G16139507

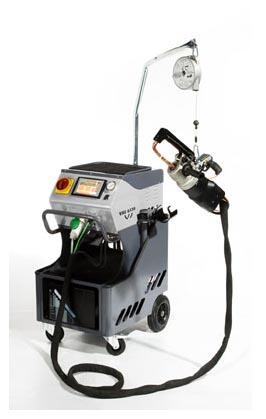

Resistance Spot Welder General workshop equipment > VAS 6530A
G16139508
Resistance Spot Welder General workshop equipment > VAS 821 101
G16139509
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G16139510
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G16139511
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G16139512
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G16139513
Welding and brazing system, ALU/MIG/MAG General workshop equipment > VAS 6388A
G16139514
Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G16139515
Mobile extraction system, aluminium General workshop equipment > VAS 6572/2
G16139516
Mobile extraction system, steel General workshop equipment > VAS 6571/1
G16139517
Compact Booster Vehicle-specific workshop equipment > VAS 6790
G16139518
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G16139519
Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G16139520
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G16139521
Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G16139522
Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G16139523
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G16139524
Extension Vehicle-specific workshop equipment > VAS 6792/2
G16139525
Extension Vehicle-specific workshop equipment > VAS 6792/28
G16139526
Crimping pliers set, 4-piece Vehicle-specific workshop equipment > VAS 6635
G16139527
Crimping pliers Vehicle-specific workshop equipment > VAS 6635/5
G16139528
Spot-weld remover General workshop equipment > VAS 882 001
G16139529
Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G16139530

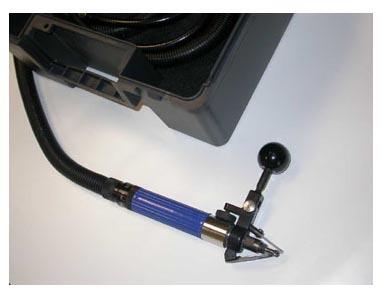

Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G16139531

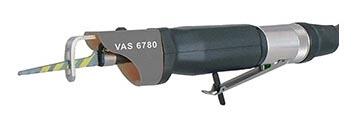

Body saw General workshop equipment > VAS 6780
G16139532
Body saw General workshop equipment > VAS 6598A
G16139533
Electric cutter Vehicle-specific workshop equipment > V.A.G 1561B
G16139534
100° countersink Vehicle-specific workshop equipment > VAS 6957
G16139535
FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G16139536
Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G16139537
Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G16139538
Compressed-air gun General workshop equipment > VAS 6648
G16139539
Hand cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G16139540

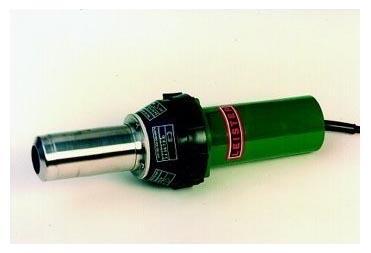

Hot-air blower General workshop equipment > V.A.G 1416
G16139541

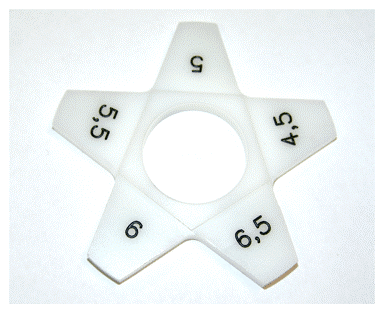

Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G16139542
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G16139543

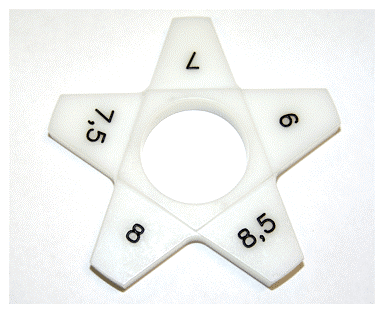

Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G16139544
