Removing Rear Closing Panel

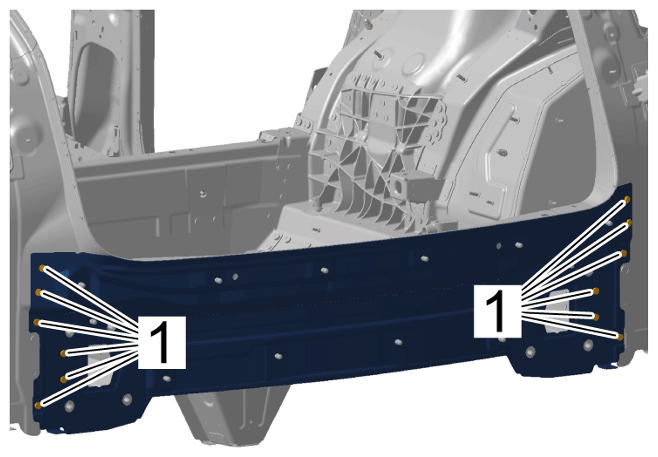

  1. Unscrew self-tapping screws -1-  .
    G16139491

    Self-tapping screws

  2. Remove punch rivets.

    > VAS 852 001 - Body dent removal unit, aluminium  and > VAS 6790 - Compact Booster

    > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

    G16139492

    Joints

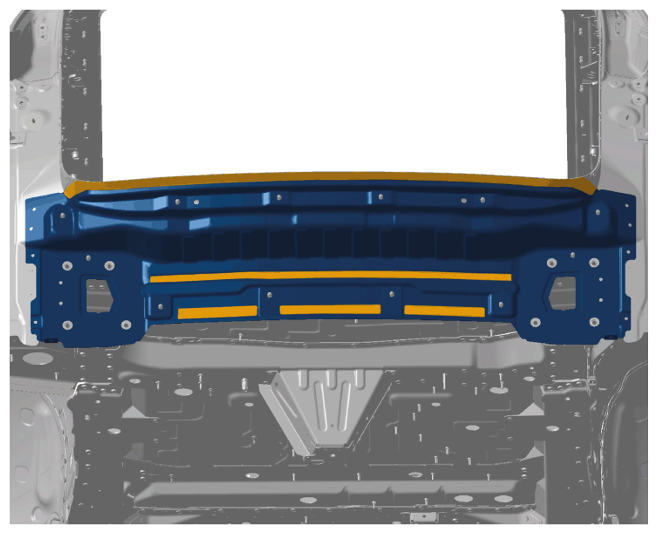

  3. Heat bonding areas > Bonding areas  . > V.A.G 1416 - Hot-air blower
    G16139493

    Bonding areas

  4. Remove rear closing panel.
