Preparing Connection Areas Of Body For Installing The Rear Closing Panel

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair wort are available.

1. Align the sealing surfaces and connections of the body.
2. De-burr connection points and prepare them for joining.
3. Prepare marked areas > Connection areas of body  for bonding and riveting.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

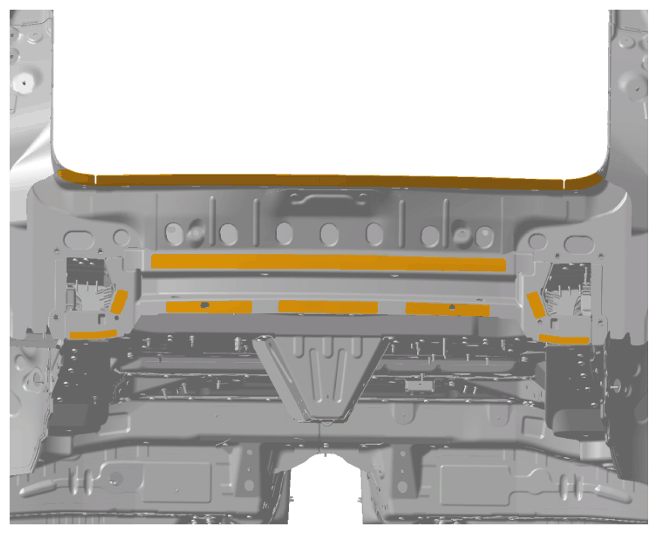

   Connection areas of body
