Technical Values

TIGHTENING TORQUE SPECIFICATIONS

Location	Des...	Type	Basic val...
Nut for rear underbody cover right	Item 2	Tightening torque	2 Nm (1.5 ftlb.)

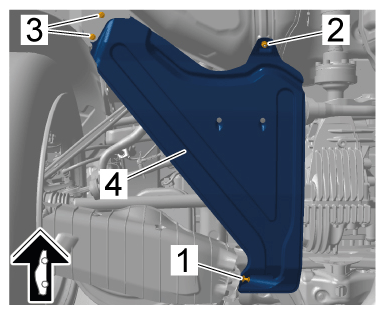

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for rear cover, right
Screws on rear underbody cover right	Item 3	Tightening torque	2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on rear underbody cover, right
Nut for rear underbody cover	Item 2	Tightening torque	2 Nm (1.5 ftlb.)

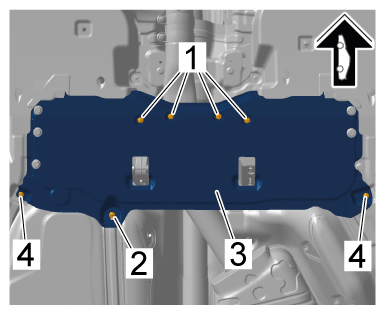

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Re ar centre underbody cover
Screws for rear underbody cover	Item 4	Tightening torque	3 Nm (2.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear centre underbody cover
Rear underbody cover on bumper	Item 1	Tightening torque	3 Nm (2.2 ftlb.)

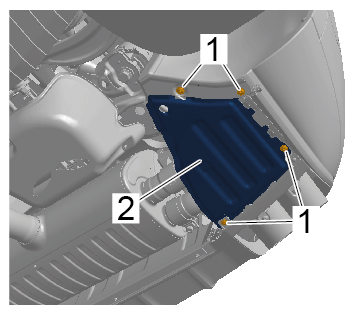

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on rear underbody cover, left
