Removing Cover For Rear Underbody

Information

• The number of screws, clips, electric plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing are shown only on one equipment va iant and can differ from the actual equipment variant.
• Some steps must be carried out automatically.

1. Remove rear underbody cover -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

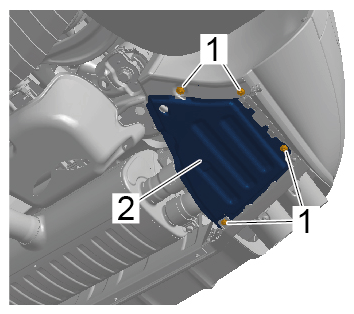

   Screws on rear underbody cover

   1. 1.1  Unscrew and remove screws -1-  .
   2. 1.2  Remove cover for rear underbody -2-  .
2. Remove rear underbody cover at the centre -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

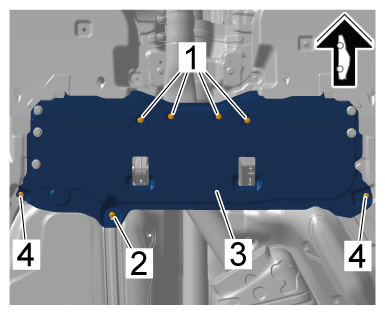

   Rear underbody cover, centre

   1. 2.1  Screw off nut -2-  .
   2. 2.2  Remove expansion rivets -1-  .
   3. 2.3  Unscrew and remove screws -4-  .
   4. 2.4  Remove rear underbody cover at the centre -3-  .
3. Remove rear underbody cover at the left -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

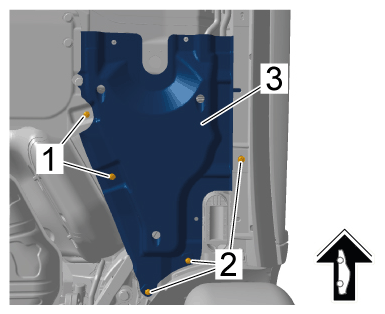

   Screws on rear underbody cover, left

   1. 3.1  Unscrew and remove screws -2-  .
   2. 3.2  Remove expansion rivets -1-  .
   3. 3.3  Remove rear underbody cover at the left -3-  .
4. Remove rear underbody cover at the right -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

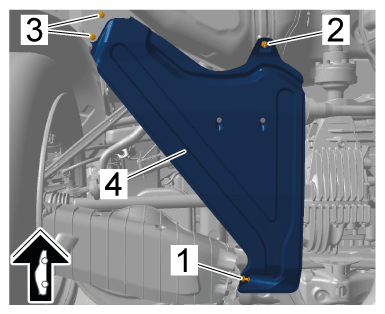

   Screws on rear underbody cover, right

   1. 4.1  Unscrew and remove screws -3-  .
   2. 4.2  Screw off nut -2-  .
   3. 4.3  Remove expansion rivet -1-  .
   4. 4.4  Remove rear underbody cover at the right -4-  .
