Subsequent Work

For centre underbody cover at the left:

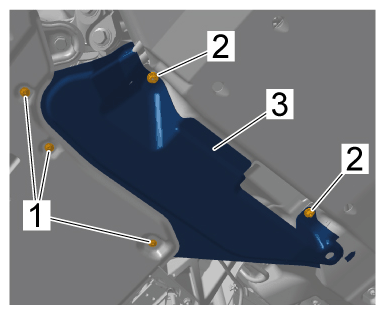

Install side section of front underbody cover -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for cover
1. 1.1 Move side section of front underbody cover -3- into installation position.
2. 1.2 Screw in screws -2- and tighten to > Tightening torque 3 Nm (2 ftlb.) > Nr.89 Pos.5 - Torque screwdriver
Lower the vehicle.
> 4X00IN Lifting the vehicle
