Removing Cover For Centre Underbody

Information

• The number of screws, clips, electric plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing a id installing are shown only on one equipment variant and can differ from the actual equipment variant.
• Some steps must be carried out automatically.

1. Remove cover for centre underbody -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

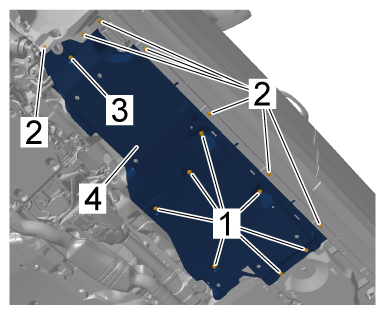

   Cover for centre underbody

   1. 1.1  Unscrew nuts -1-  .
   2. 1.2  Unscrew and remove screws -2 and 3-  .
   3. 1.3  Remove cover for centre underbody -4-  .
2. Only for centre underbody cover at the left:

   Remove side section of front underbody ccver -3-  .
