Preliminary Work

  1. Raise the vehicle.

    > 4X00IN Lifting the vehicle

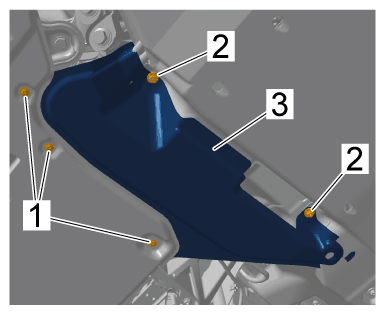

    G16139430Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws for cover

    1. 2.1  Unscrew and remove screws -2-  .
    2. 2.2  Remove side section of front underbody cover -3-  .
