Installing Cover For Centre Underbody

Information

Micro-self-locking screw

Fit new screw following removal.

1. Installation is performed in reverse order. Pay particular attention to the following:

   Tighten screws and nuts using > Nr.89 Pos.5 - torque screwdriver  .

   Tighten screws -2-  to > Tightening torque 3 Nm (2 ftlb.)  .

   Tighten screw -3-  to > Tightening torque 3 Nm (2 ftlb.)  .

   Tighten nuts -1-  to > Tightening torque 2 Nm (1.5 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

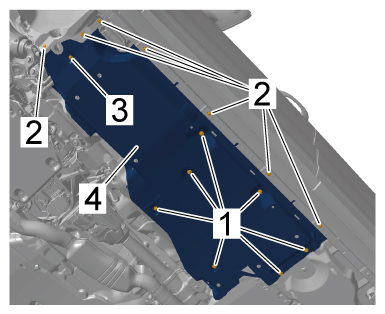

   Cover for centre underbody
