Technical Values

TIGHTENING TORQUE SPECIFICATIONS

Location	Des...	Type	Basic val...
Front section of front underbody cover	Item 2	Tightening torque	3 Nm (2 ftlb.)

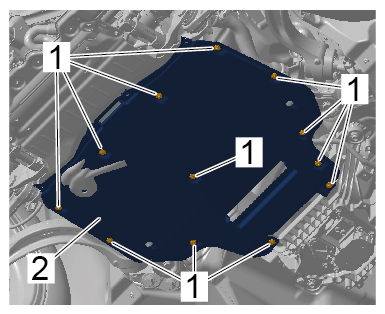

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front section of front underbody cover
Front section of front underbody cover	Item 1	Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front section of front underbody cover
Rear section of front underbody cover	Item 1	Tightening torque	3 Nm (2 ftlb.)

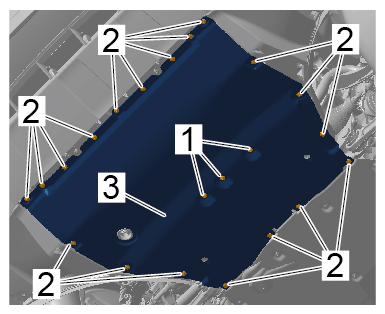

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear section of front urderbody cover
Side section of front underbody cover	Item 2	Tightening torque	3 Nm (2 ftlb.)

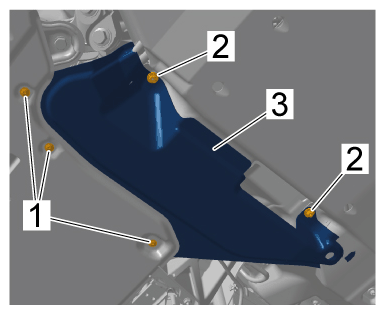

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for fro nt underbody cover
