Home >> Porsche >> 2023 >> Cayenne Base, 4D Utility Coupe >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> 51 - Body Center, Roof, Frame (9YB) >> 5187 Seat Cross Member >> WM, 518755 Replacing Seat Cross Member >> Tools

WM, 518755 Replacing Seat Cross Member: Tools

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G2010/2A-1
G16139341Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Aluminium tool set General workshop equipment > VAG2010/2A
G16139342Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G16139343Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring and straightening system General workshop equipment > VAS 811 017
G16139344Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring system Vehicle-specific workshop equipment > VAS 811 019
G16139345Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 6755
G16139346Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 6545A
G16139347Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 6530A
G16139348Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 821 101
G16139349Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G16139350Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G16139351Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G16139352Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G16139353Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, ALU/MIG/MAG General workshop equipment > VAS 6388A
G16139354Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G16139355Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mobile extraction system, aluminium General workshop equipment > VAS 6572/2
G16139356Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mobile extraction system, steel General workshop equipment > VAS 6571/1
G16139357Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Compact Booster Vehicle-specific workshop equipment > VAS 6790
G16139358Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G16139359Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G16139360Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G16139361Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplement set Tor we nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G16139362Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G16139363Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G16139364Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension Vehicle-specific workshop equipment > VAS 6792/2
G16139365Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension Vehicle-specific workshop equipment > VAS 6792/28
G16139366Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Crimping pliers set, 4-piece Vehicle-specific workshop equipment > VAS 6635
G16139367Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Crimping pliers Vehicle-specific workshop equipment > VAS 6635/5
G16139368Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Spot-weld remover General workshop equipment > VAS 882 001
G16139369Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pneumatic spot-Weld Remover General workshop equipment > VAS 6322A
G16139370Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G16139371Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment > VAS 6780
G16139372Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment > VAS 6598A
G16139373Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Electric cutter Vehicle-specific workshop equipment > V.A.G 1561B
G16139374Courtesy of PORSCHE CARS NORTH AMERICA, INC.
100° countersink Vehicle-specific workshop equipment > VAS 6957
G16139375Courtesy of PORSCHE CARS NORTH AMERICA, INC.
FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G16139376Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G16139377Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pneumatic Cartridge Gun Tor Seam Sealing General workshop equipment > V.A.G 1761/1
G16139378Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Compressed-air gun General workshop equipment > VAS 6648
G16139379Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hand cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G16139380Courtesy of PORSCHE CARS NORTH AMERICA, INC.

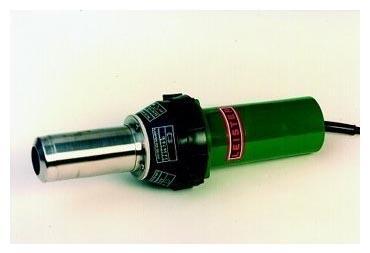

Hot-air blower General workshop equipment > V.A.G 1416
G16139381Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G16139382Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G16139383Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G16139384Courtesy of PORSCHE CARS NORTH AMERICA, INC.
