Removing Seat Cross Member

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

1. Mark and make cut.

   -A-  > Length 20 mm

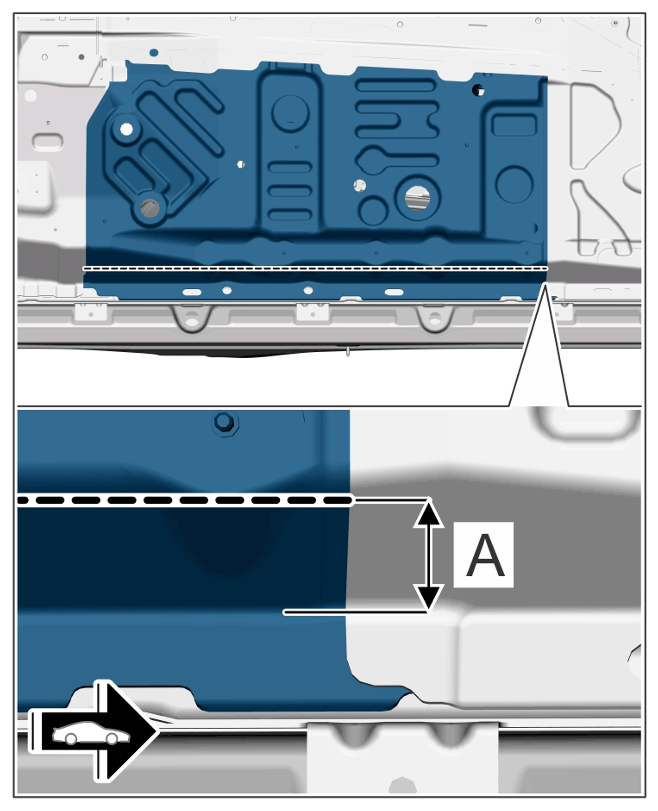

   1. 1.1  Cutting guide from below.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Cut

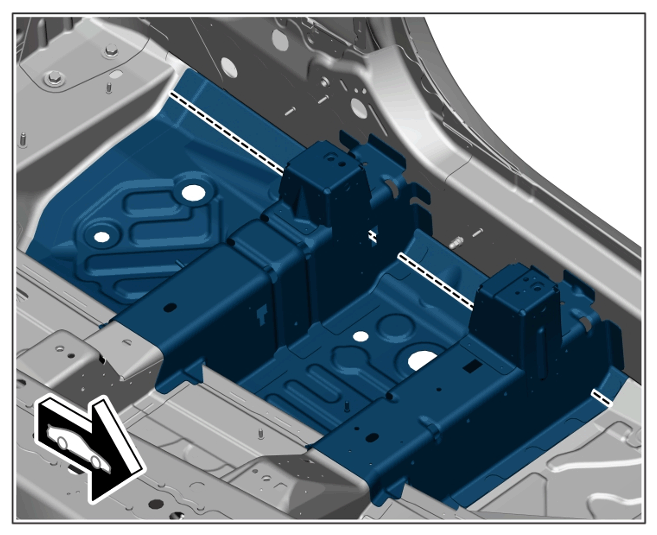

   2. 1.2  Cutting guide from above.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Cut

2. Disconnect connection points.
   1. 2.1  Removing punch rivets using > VAS 852 001 - aluminium body dent removal unit  and > VAS 6790 - compact booster.

      > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

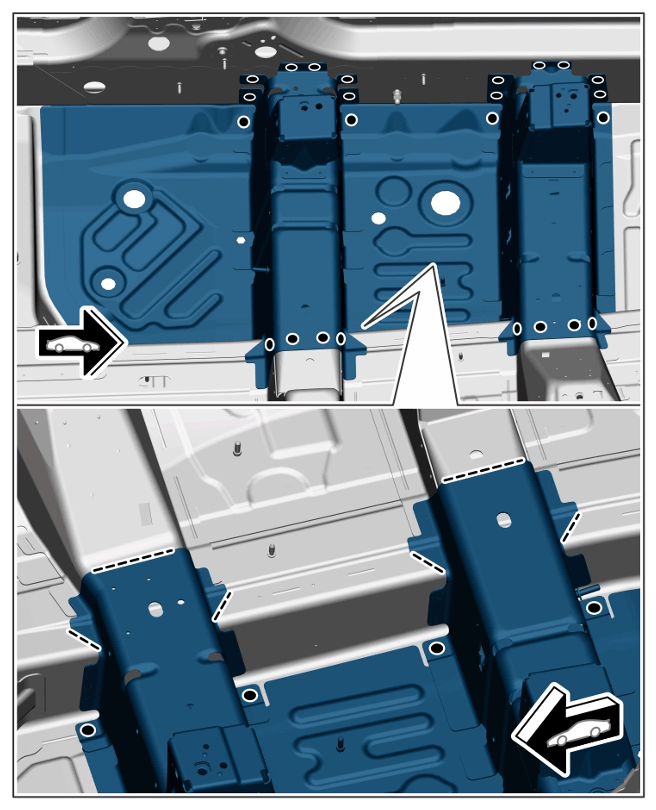

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Punch rivets

   2. 2.2  Drill out spot welds.

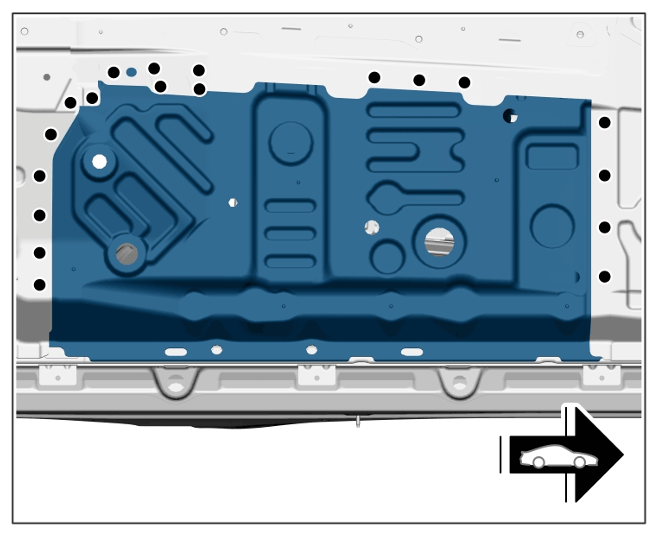

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Spot welds

3. Cut welded seams on the seat cross member.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Welded seams

4. Heat bonding areas.

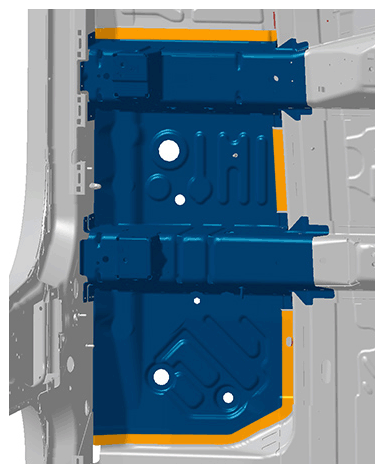

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Upper bonding areas

5. Removing seat cross member.
