Removing Connecting Strip

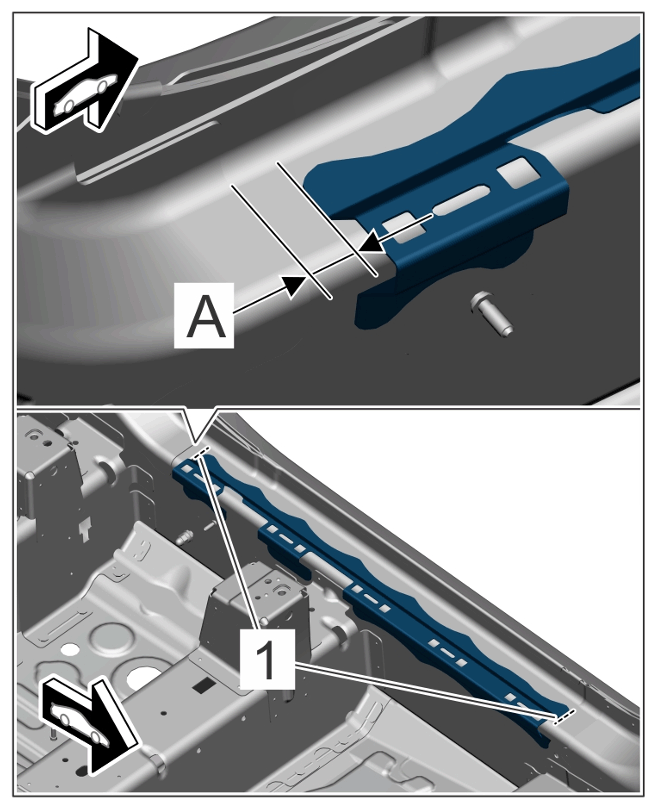

  1. Mark installation position -1-  .

    -A-  > Length 18.5 mm

    G16139387Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installation position

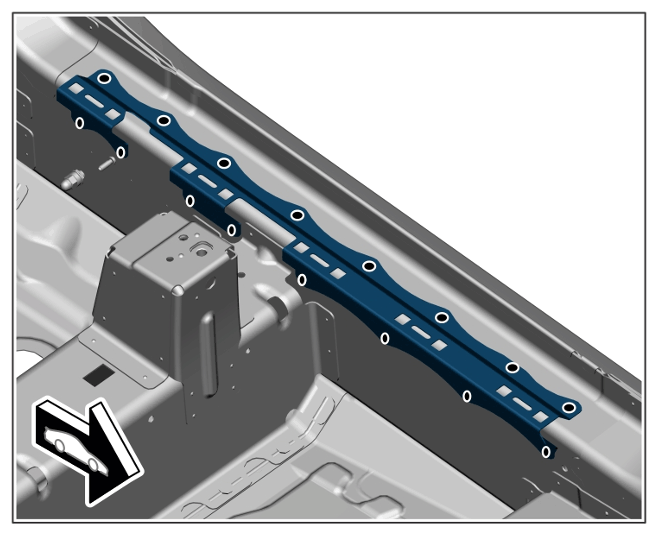

  2. Drill out spotwelds.
    G16139388Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spotwelds

  3. Remove connecting strip.
