Preparing Connection Areas Of Body For Installing Seat Cross Member
- Align contact surfaces and connections, of the body.
- De-burr connection points and prepare them for joining.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for late r repair work are available.
- Prepare marked areas > Bonding areas
for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
Bonding areas

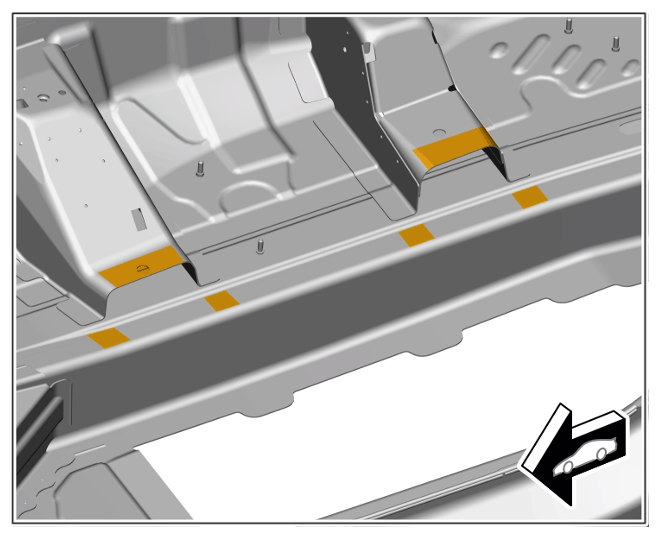

- Prepare marked areas > Welding areas
for welding.
Welding areas
