Installing Seat Cross Member

Install seat cross member and check that it fits perfectly.
Information
- Apply adhesive evenly over the entire bonding surface.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.
Apply adhesive on bonding areas > Bonding areas of the body. > Application depth 0.5 mm
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

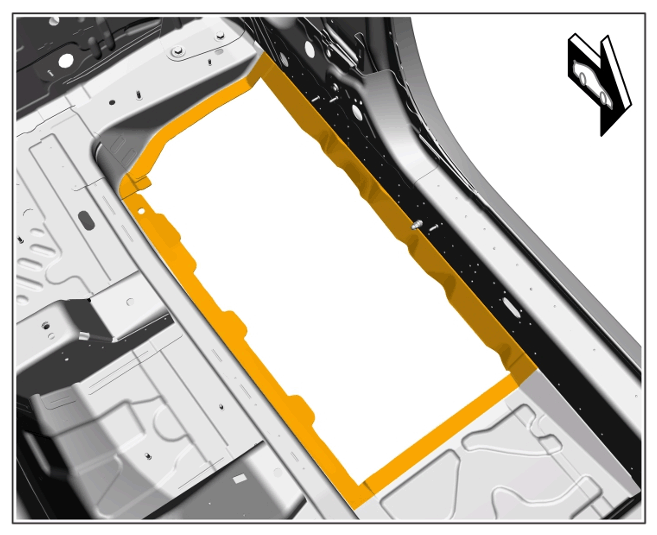

Bonding areas

Information
- Apply adhesive evenly over the entire bonding surface.
Apply adhesive on seat cross member > Upper bonding areas. > Application depth 0.5 mm
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

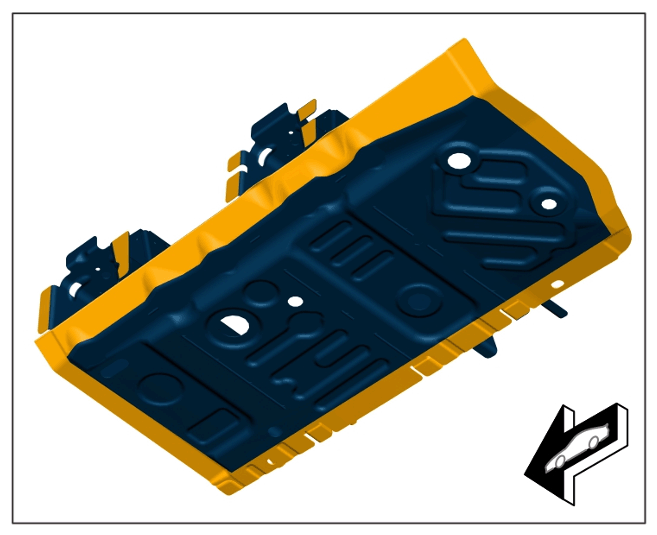

Upper bonding areas
1. 3.1 Also apply a bead of adhesive all around the bonding surface. > Application depth 3 mm
Rivet in seat cross member > Blind rivets, top.
> BLIND RIVET PAF.009.075

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

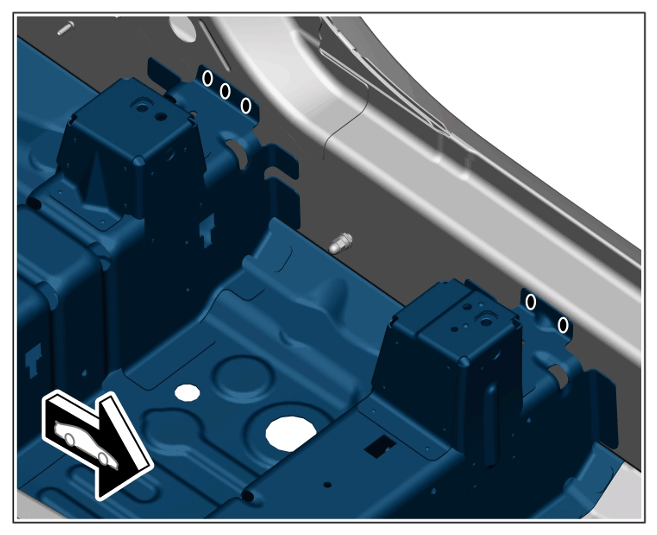

Blind rivets, top
Rivet in seat cross member > Blind rivets, bottom.
> BLIND RIVET PAF.009.075

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

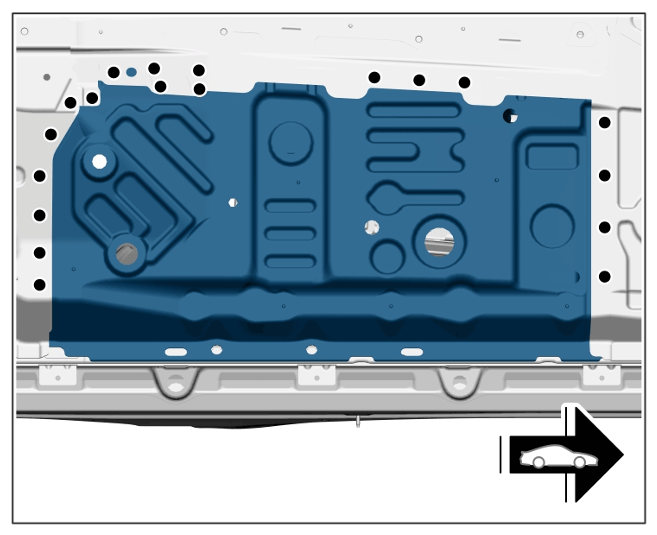

Blind rivets, bottom
Rivet in seat cross member > Blind rivets in overlap area.
> BLIND RIVET PAF.009.075

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

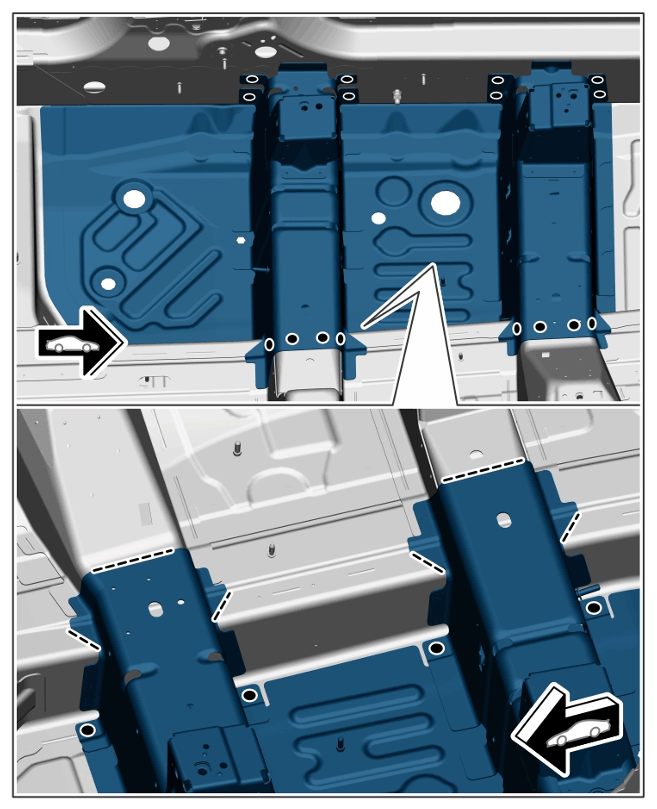

Blind rivets in overlap area
Punch-weld the seat cross member > Punch-welds.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

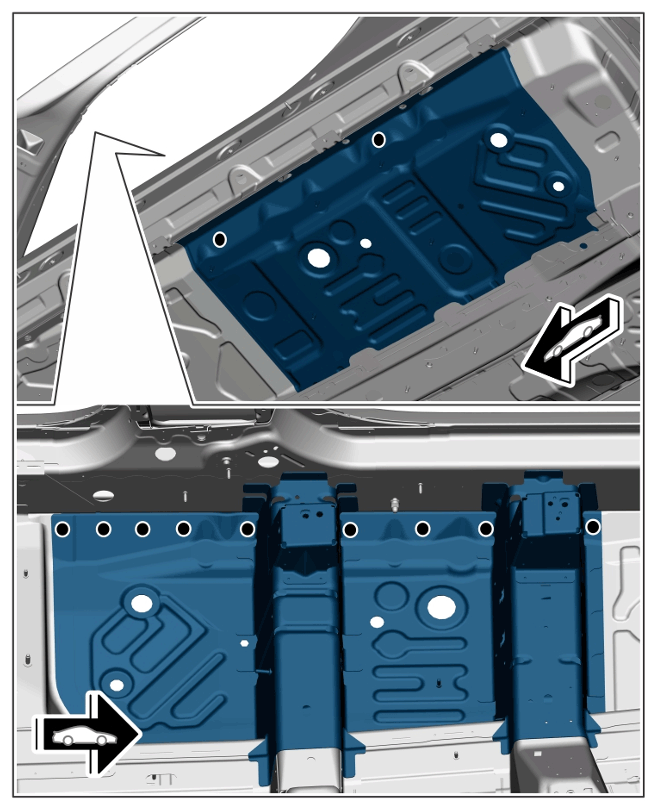

Punch-welds
Apply a full steel weld to the seat cross member > Full weld seam using inert gas.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Full weld seam using inert gas
