Installing Connecting Strip

  1. Position and secure connecting strip.

    > Length 18.5 mm

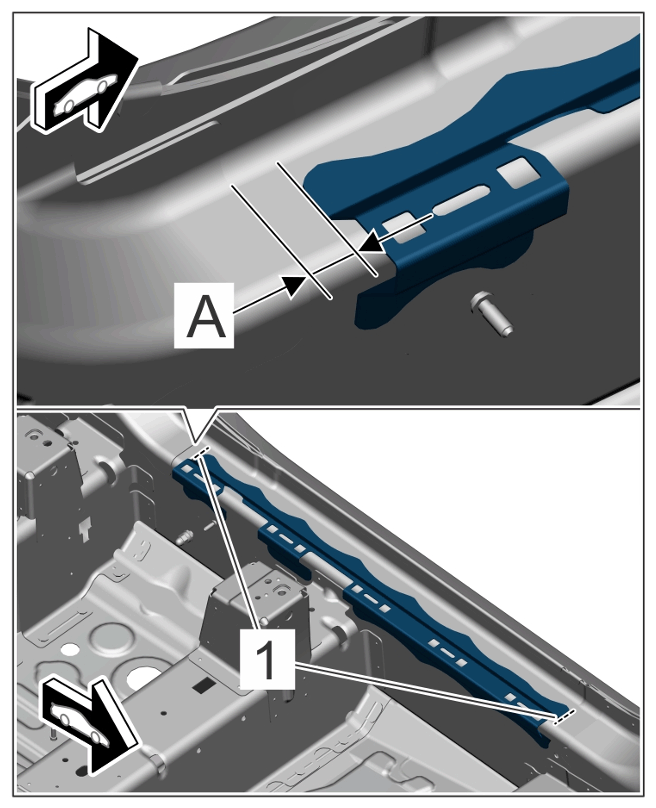

    G16139415Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installation position

  2. Plug-weld connecting strip.

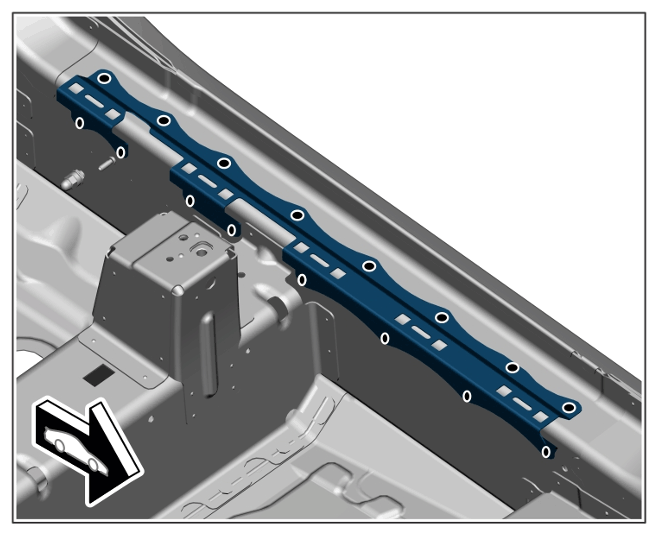

    G16139416Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spotwelds
