Preparing Connection Areas Of The Body For Installing Floorpan (Rear)

Align contact surfaces and connections of the body.
De-burr connection points and prepare them for joining.
Prepare connection areas of the bodywork in the marked areas for gluing and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

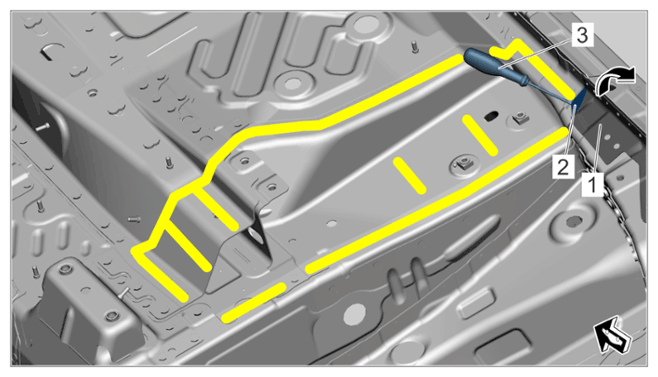

Bonding areas
1. 3.1 Prepare connection areas of the b od ywork in the marked areas for gluing and riveting.
  > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
2. 3.2 Carefully bend up the corner -2- of the gusset plate -1- using a suitable tool -3-Arrow- to make space for (rear) floorpan.
