Removing Floorpan (Cross Member)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

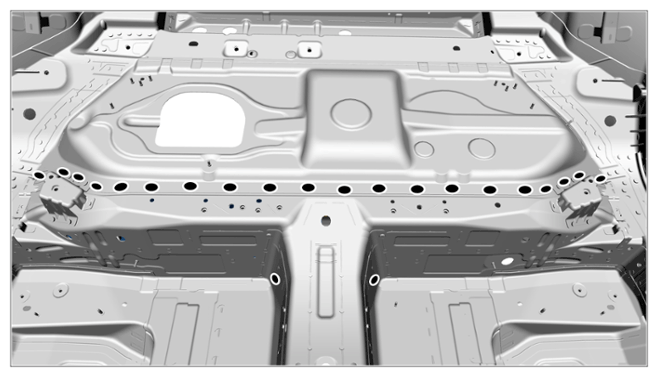

Inside punch rivets

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

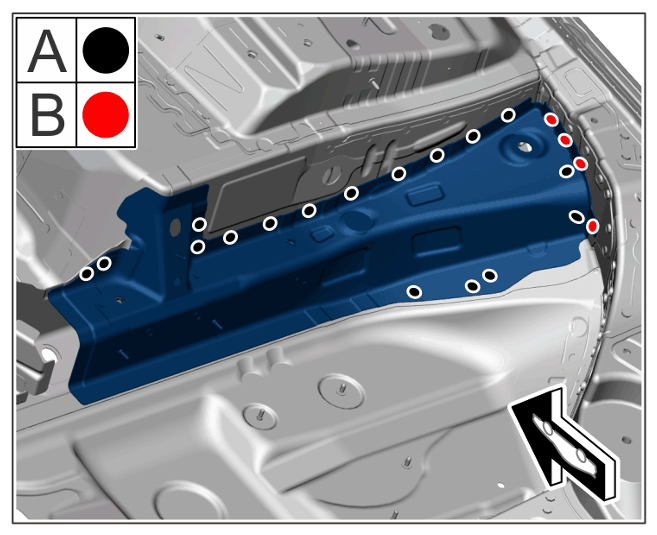

Right section

1. 2.1  Remove punch rivets -A-  using > VAS 852 001 - body dent removal unit, aluminium  and > VAS 6790 - compact booster.
2. 2.2  Grind down punch rivets -B-  in a sheetmetal position using a belt grinder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

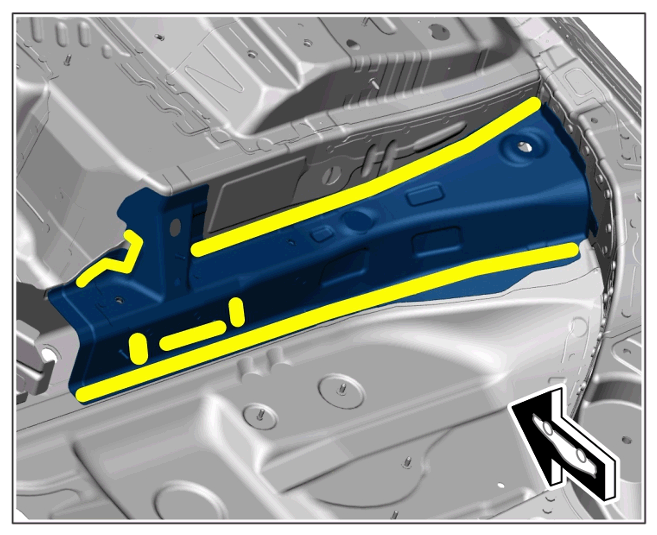

Bonding areas on right section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

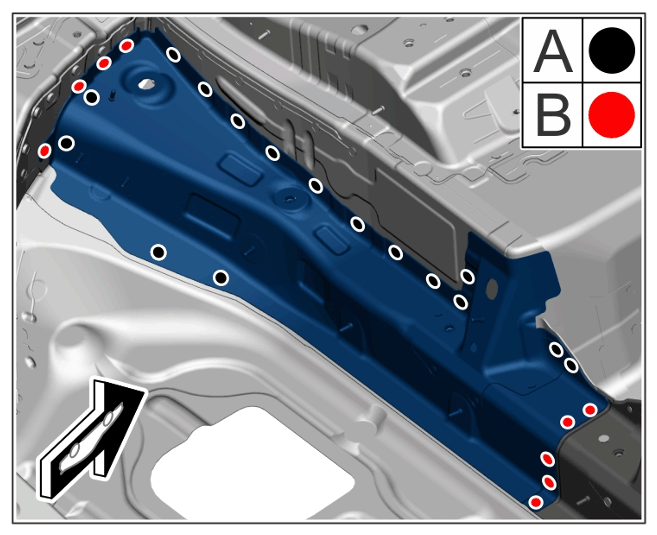

Section - left

1. 5.1  Remove punch rivets -A-  using > VAS 852 001 - body dent removal unit, aluminium  and > VAS 6790 - compact booster  .
2. 5.2  Grind down punch rivets -B-  in a sheetmetal position using a belt grinder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

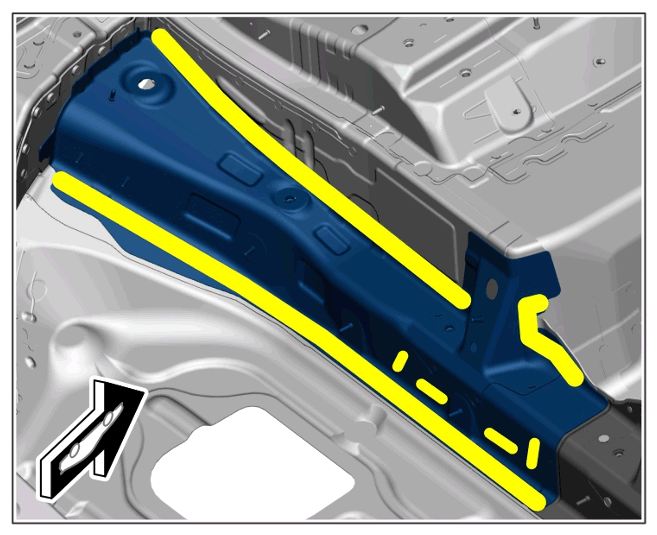

Bonding areas on left section
