Removing Floorpan

1. 1.1  Remove punch rivets using > VAS 852 001 - body dent removal system, aluminium  and > VAS 6790 - compact booster.

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

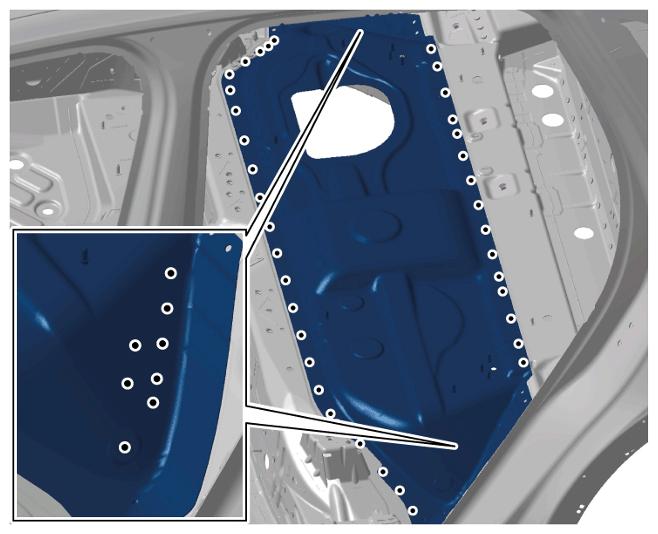

   Rivet areas

2. 1.2  Unscrew self-tapping screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

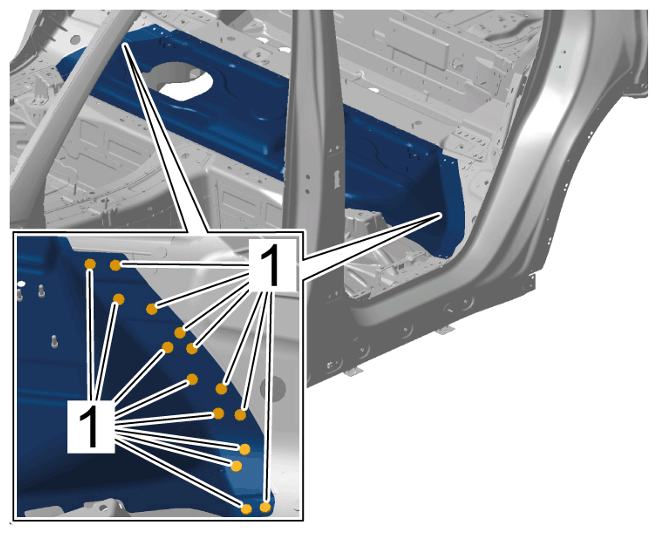

   Sell - tapping screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

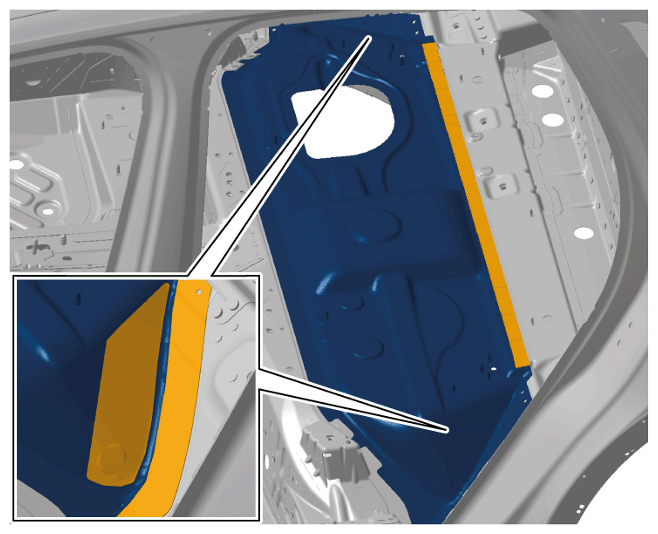

Bonding areas
