Installing Floorpan

Install floorpan and check that it fits perfectly.
Information
- Apply adhesive evenly over the en tire bonding surface.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.

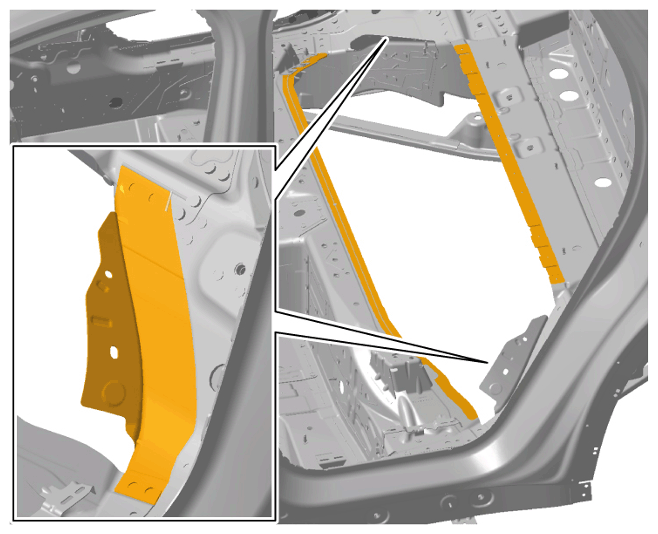

Apply adhesive on joint areas > Bonding areas of the body. > Application depth 0.5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas

Information
- Apply adhesive evenly over the entire bonding surface.

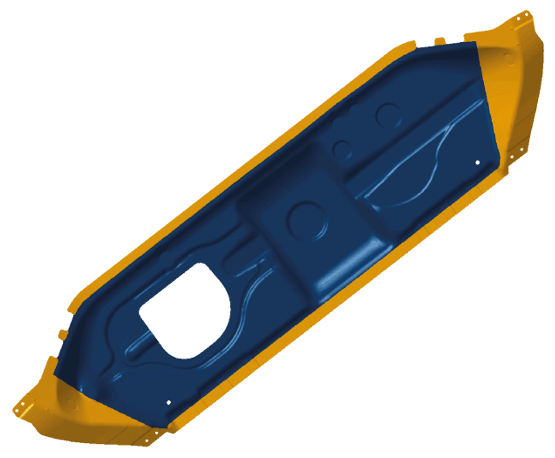

Apply adhesive in the marked areas > Bonding area on the floorpan. > Application depth 0.5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area
1. 3.1 Also apply a bead of adhesive all around the bonding surface. > Application depth 3 mm
  Information
  - Observe joining direction.

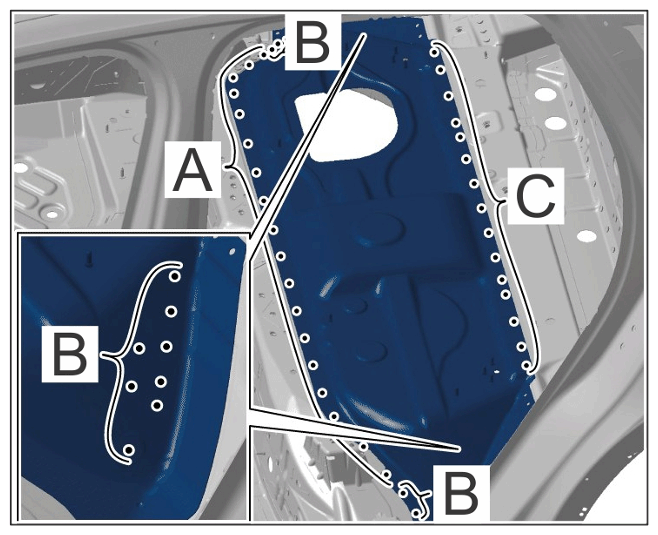

Rivet the floorpan in the marked areas -A, B and C-.
Area -A, C- : > BLIND RIVET PAF.008.769

Area -B- : > BLIND RIVET PAF.009.075

Join direction -A, B- from underbody to the inside.

Join direction -C- from interior to the outside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rivet areas

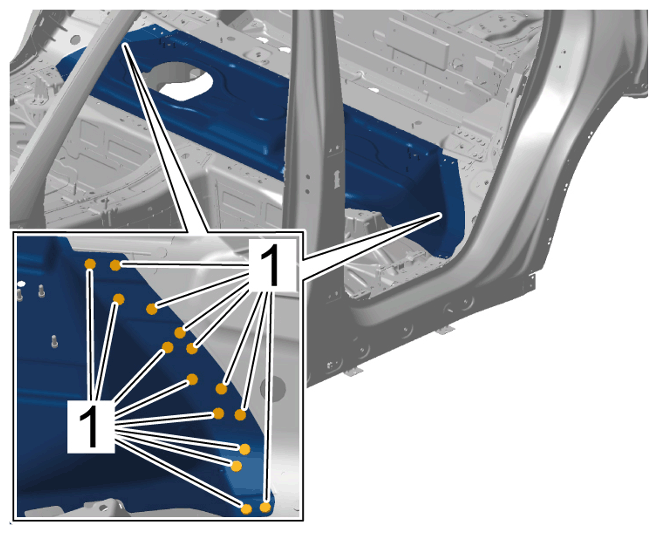

Screw in self-tapping screws -1- .
> 5X00IN24 SET SELF-TAPPING SCREWS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Self-tapping screws
