Home >> Porsche >> 2023 >> Cayenne Base, 4D Utility Coupe >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> 51 - Body Center, Roof, Frame (9YB) >> 5173 FLOORPAN >> WM, 517355 Replacing (Front) FLOORPAN >> Removing Outer Reinforcement

Removing Outer Reinforcement

  1. Drill out spotwelds on outer reinforcement.

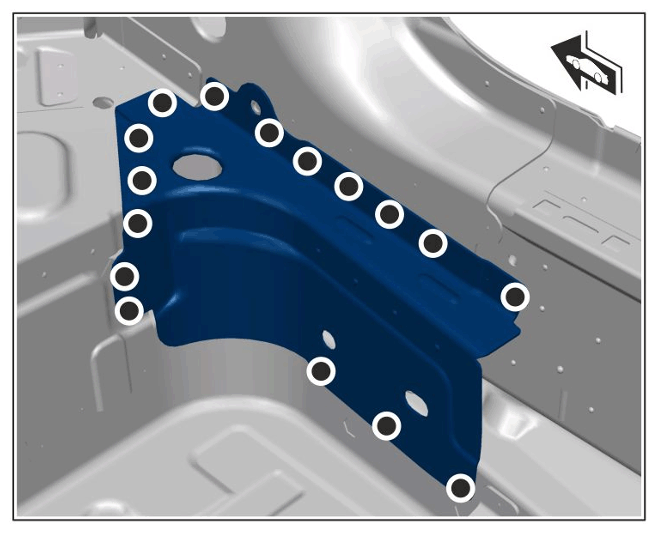

    G16139254Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spotwelds on outer reinforcement

  2. Remove outer reinforcement.
