Removing Inner Reinforcement

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

1. Separate welded seams on inner reinforcement.

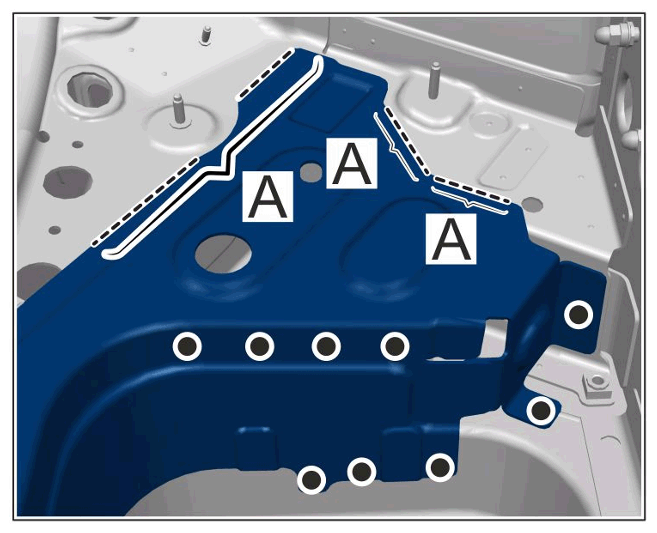

   1. 1.1  Cut welds -A-  in the front area.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Welded seams on front inner reinforcement

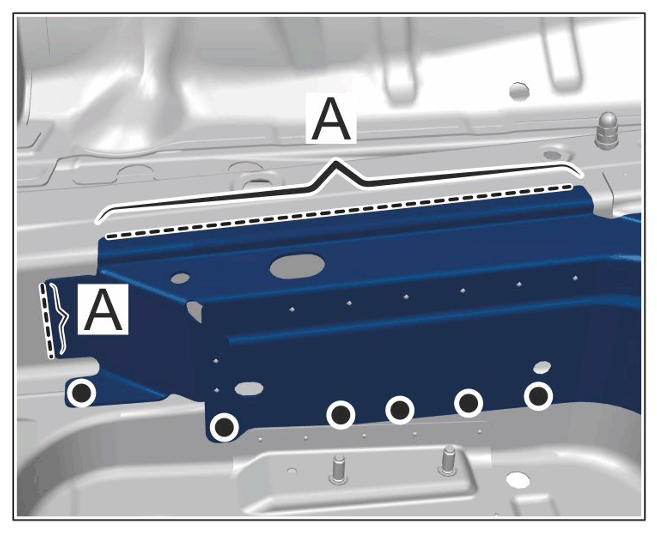

   2. 1.2  Cut welds -A-  in the rear area.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Welded seams on rear inner reinforcement

2. Drill out spotwelds on inner reinforcement.
   1. 2.1  Separate spotwelds in the front area.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Spotwelds on front inner reinforcement

   2. 2.2  Separate spotwelds in the rear area.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Spotwelds on rear inner reinforcement

3. Remove inner reinforcement.
