Installing Inner Reinforcement

Join inner reinforcement > Inner reinforcement to the body.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

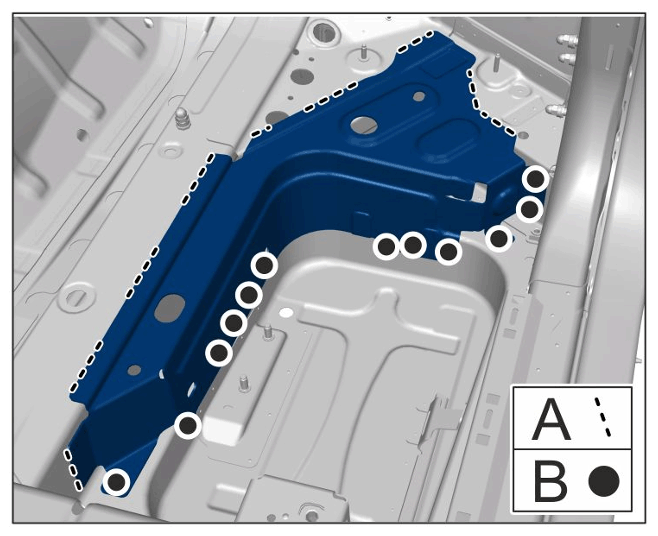

Inner reinforcement
1. 1.1 -A- :
  Apply full weld using inert gas.
2. 1.2 -B- :
  Plug-weld.
