Installing Front Floorpan

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

Apply adhesive to the marked joint area -A- of the inner body at the top.
Apply adhesive evenly over the entire bonding surface -A- . > Application thickness 0.5 mm

> 5X00IN21 WORKING WITH BODY WORK STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

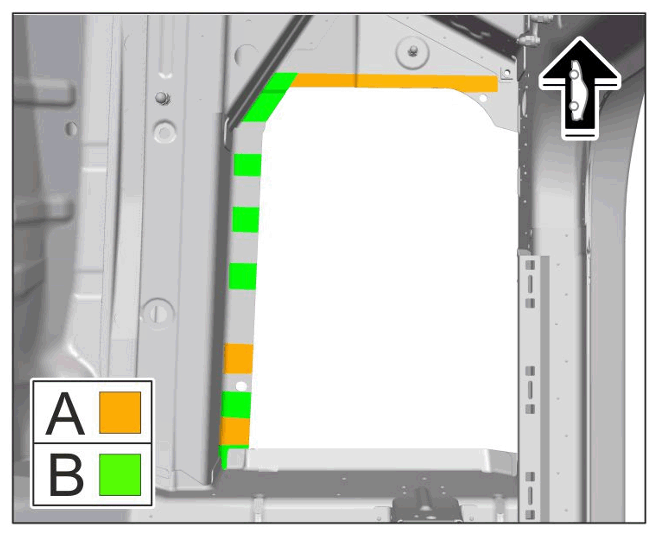

Applying adhesive on inner body at the top
Apply adhesive to the marked joint area -A- of the outer body at the bottom.
Apply adhesive evenly on the entire bonding surface -A- of the body. > Application thickness 0.5 mm

> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

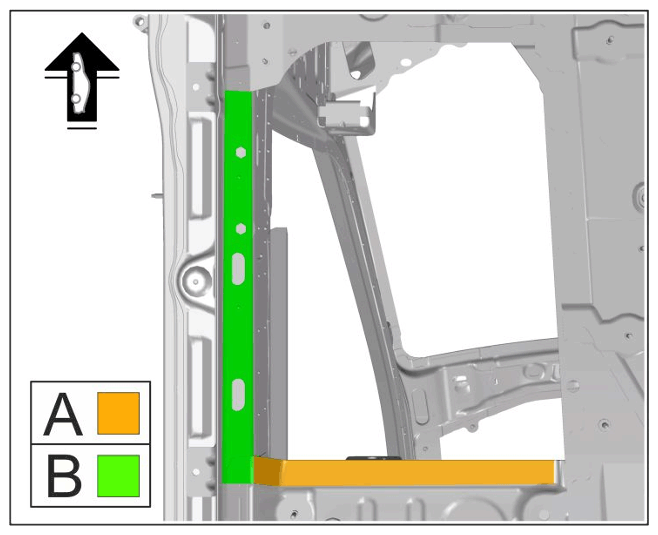

Applying adhesive to outer body at the bottom
Apply adhesive to the marked joint areas of the floorpan.
Apply adhesive evenly over the entire bonding surface. > Application thickness 0.5 mm

> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

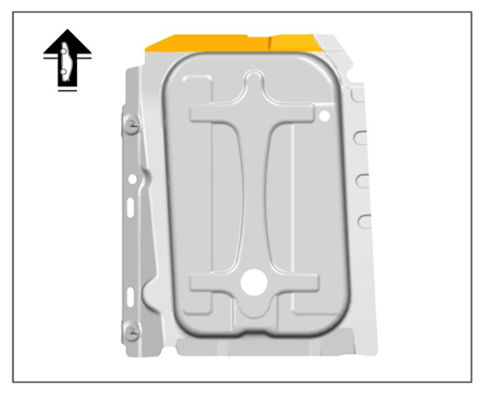

Applying adhesive to inner floorpan at the top

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

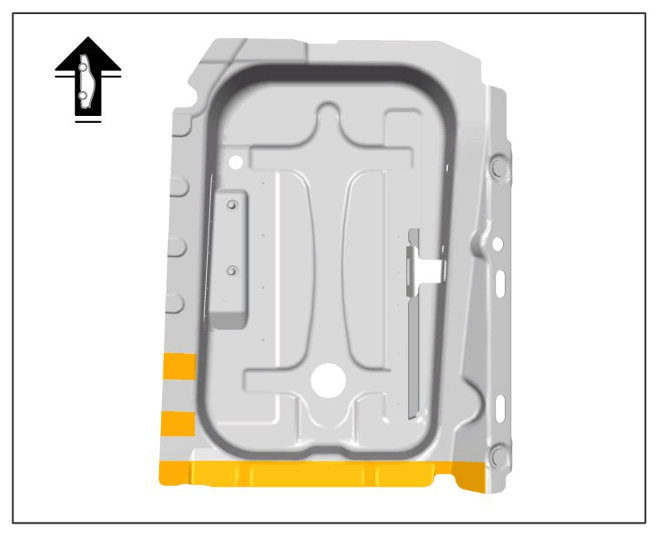

Applying adhesive to outer floorpan at the bottom
1. 3.1 Also apply a bead of adhesive all around the bonding surface. > Application depth 3 mm
Join inner floorpan > Inner floorpan on the body to the body.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

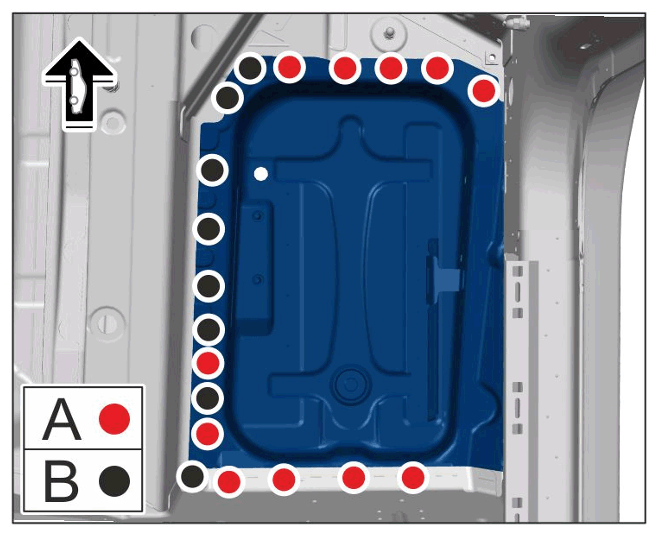

Inner floorpan on the body
1. 4.1 -A- :
  Set blind rivets. > BLIND RIVETS PAF.009.075
2. 4.2 -B- :
  Plug-weld.
Join outer floorpan > Outer floorpan on the body to the body.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

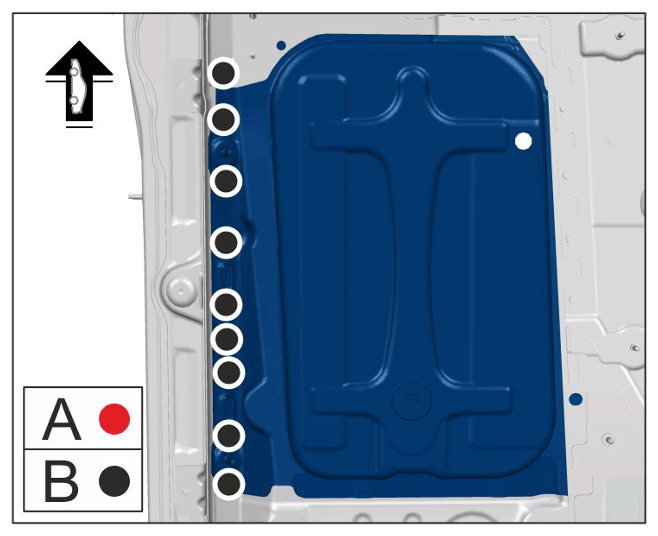

Outer floorpan on the body
1. 5.1 -B- :
  Plug-weld.
