51 - Body Center, Roof, Frame (9YB)
>>
5173 FLOORPAN
>>
WM, 517355 Replacing (Front) FLOORPAN
>>
Installation Position
Installation Position

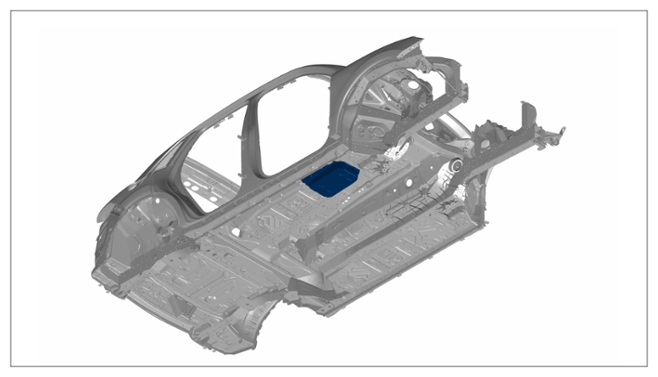

Fig 1: Front Floorpan Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Installation position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
