Technical Values

TIGHTENING TORQUE SPECIFICATIONS

Location	Des...	Type	Basic val...

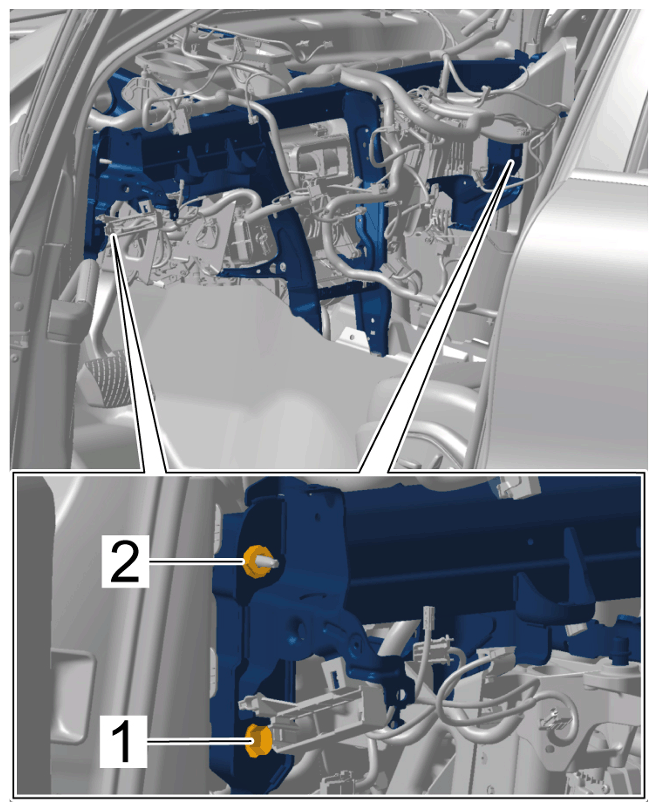

Screws on pillars	Item 1	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Nuts on pillars	Item 2	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts

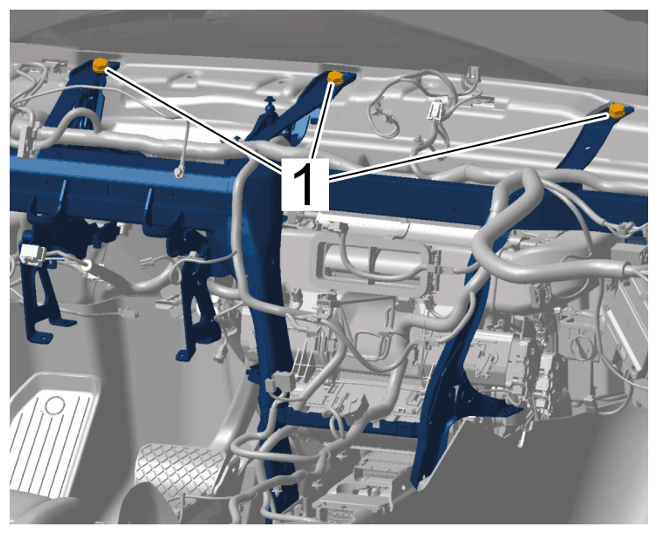

Screws, top	Item 1	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

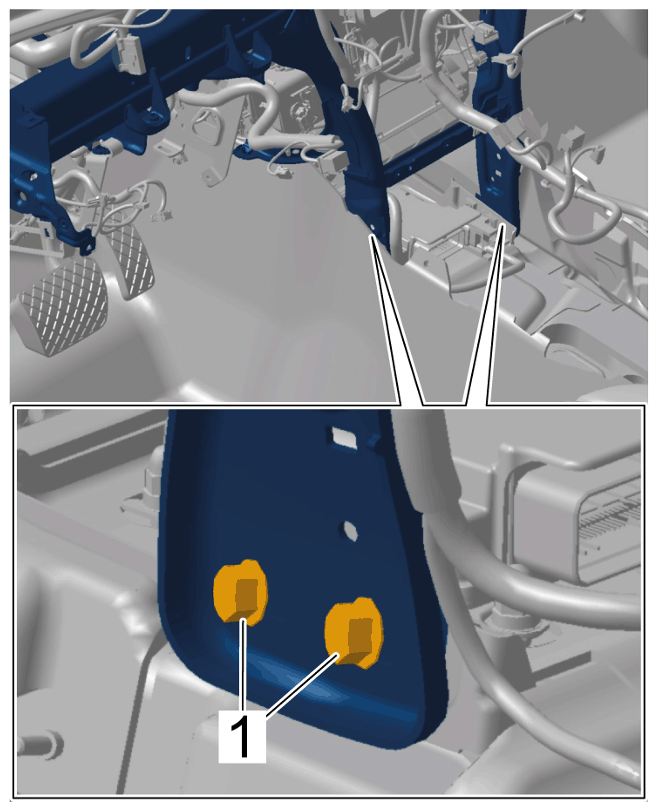

Screws, bottom	Item 1	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Carpet

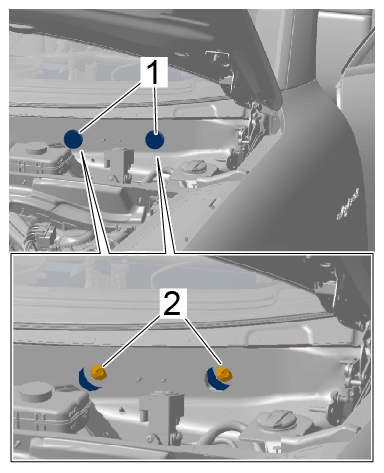

Screws, front	Item 2	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Stoppers
Mounting saddle to retaining frame	Hexagon-head bolt, M8 x 35	Tightening torque	20 Nm (15 ftlb.)
Screw securing heating/fresh-air unit to dashboard bracket	Item 1	Tightening torque	3.6 Nm (2.6 ftlb.)
