Subsequent Work
- Install wiper linkage.
> 921919 Removing and installing wiper linkage
- Secure fuse box at side of dashboard.
> 978409 Loosening and securing fuse box at side of dashboard
- Clip in air guide on defroster -1-
.
Air guide on defroster

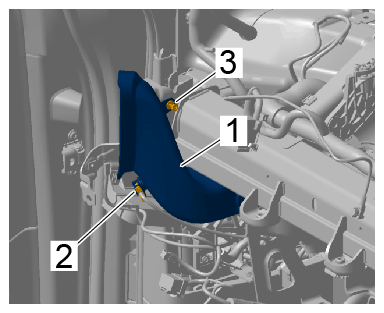

- Install air guide on driver's side -1-
.
Air guide on driver's side
- 4.1 Install expanding clip -3- .
- 4.2 Plug in electric plug connection -2- .
- Install front footwell outlet vent.
> 805519 Removing and installing front footwell outlet vent
- Install knee airbag on passenger's side.
> 697919 Removing and installing knee airbag on passenger's side
Only for vehicles with Head-up display (I-no. KS1)
- Install windscreen projection control unit.
> 908619 Removing and installing windscreen projection control unit
- Install steering column centre.
> 481519 Removing and installing steering column centre
- Install dashboard.
> 701819 Removing and installing dashboard
- Install windscreen.
> 641219 Removing and installing windscreen
