Removing Dashboard Bracket

Unclip electric wire harnesses on dashboard bracket.

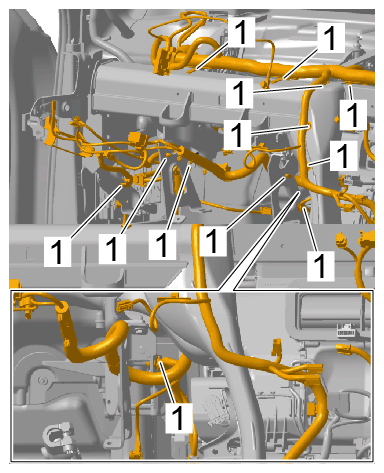

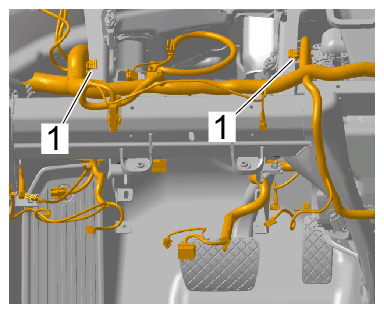

1.1 Unclip section of electric wire harness on driver's side -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Section on driver's side

1.2 Unclip section of electric wire harness on lower driver's side -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Section on lower driver's side

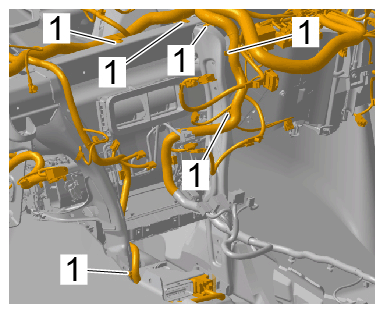

1.3 Unclip middle section of electric wire harness -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Middle section

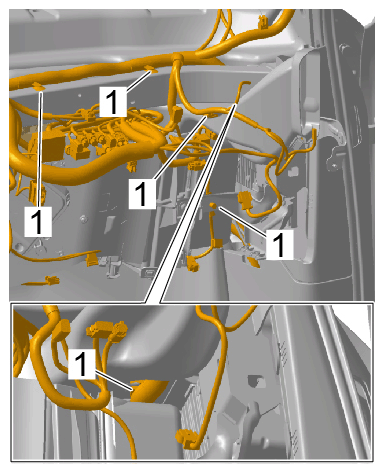

1.4 Unclip section of electric wire harness on passenger's side -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Section on passenger's side

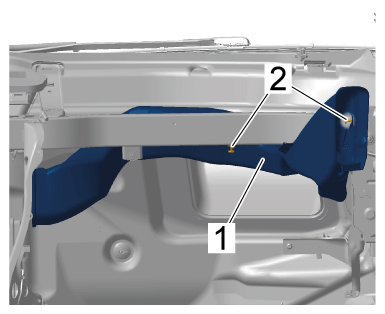

Remove air guide on passenger's side -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide on passenger's side
1. 2.1 Remove expanding clips -2- .
2. 2.2 Guide out air guide on passenger's side -1- under the dashboard bracket.
Remove stoppers -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plug

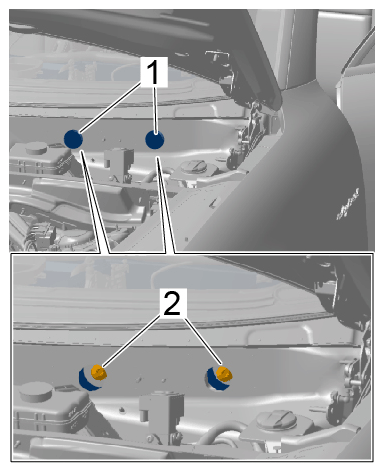

Loosen brake booster.
> 477019 Removing and installing brake booster
Unscrew and remove screws -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Unscrew screws -1- on air conditioner.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air conditioner

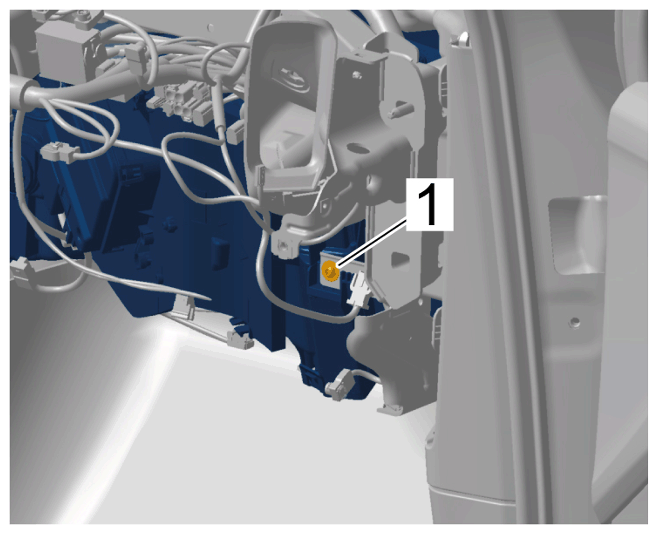

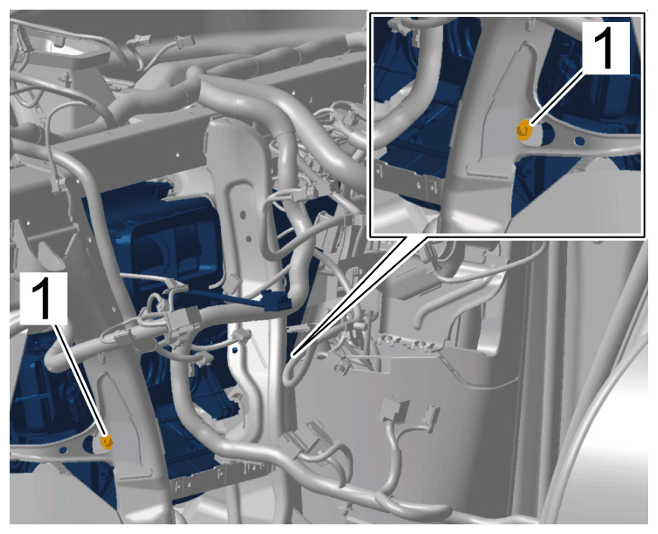

Unscrew screws -1- on air conditioner.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air conditioner, right

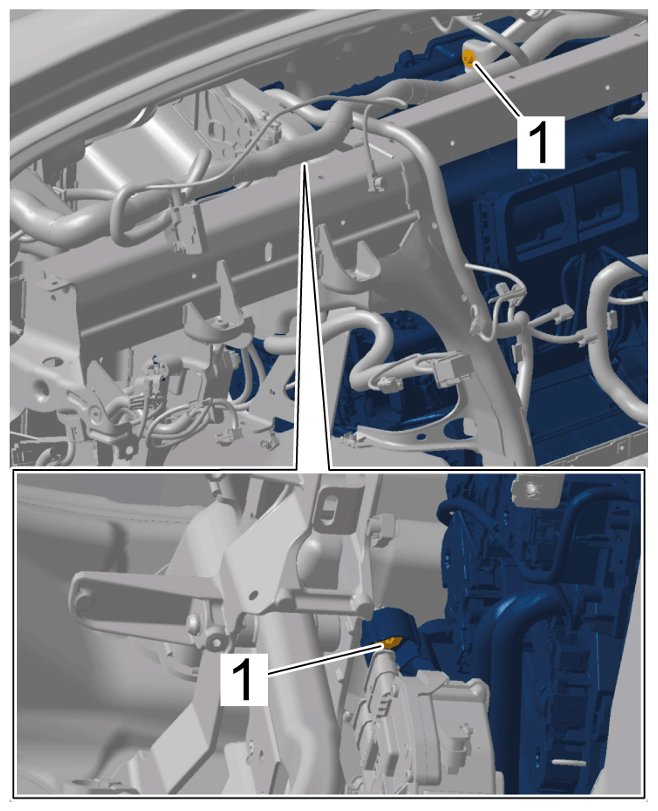

Unscrew screws -1- on air conditioner.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air conditioner, left

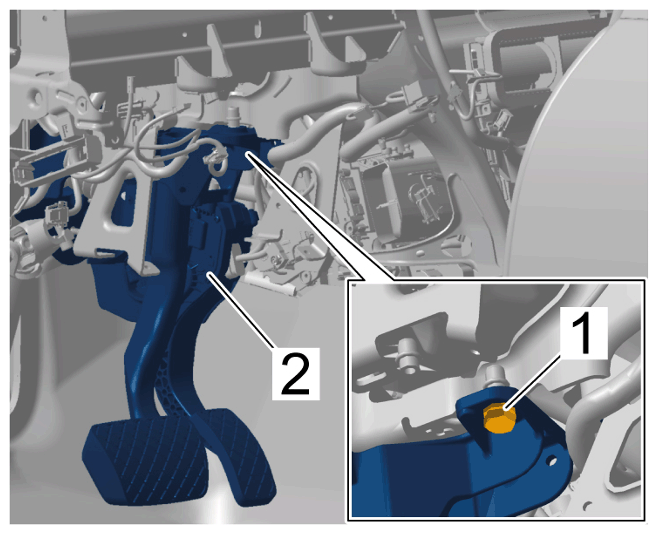

Unscrew screw -1- on pedal module -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pedal module

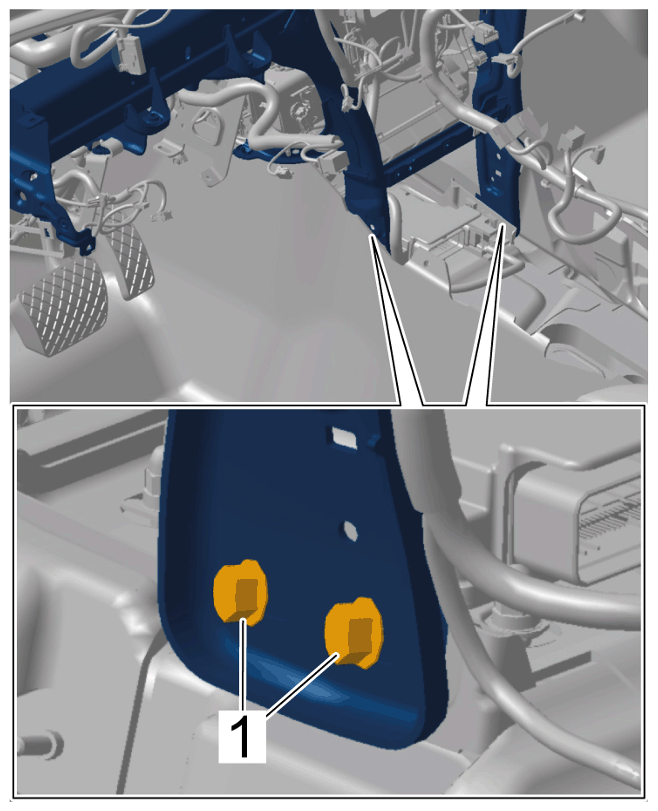

Press the carpet aside and unscrew screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carpet

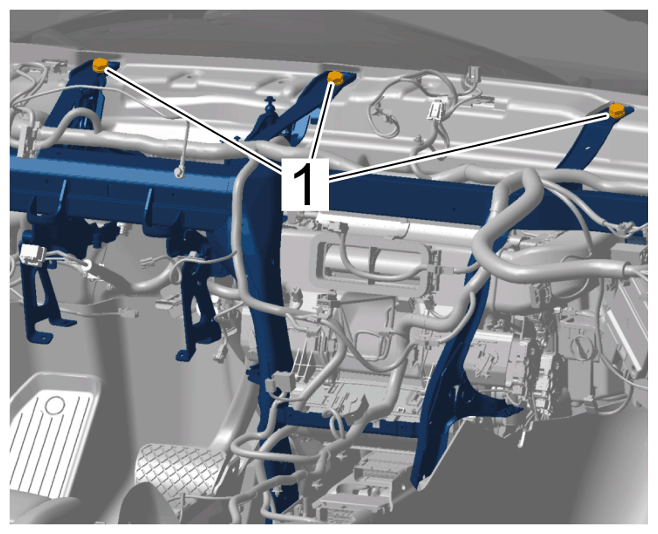

Unscrew screws -1- at the windscreen.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

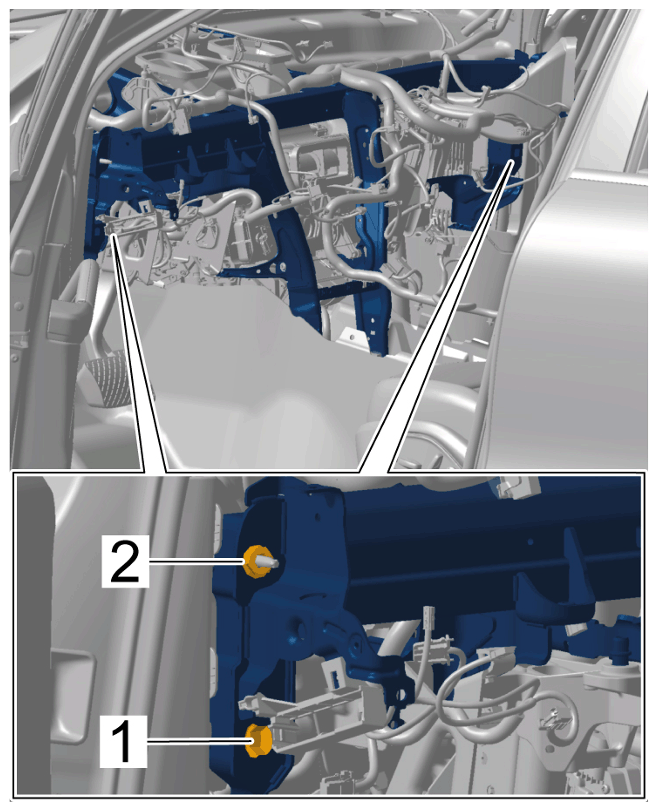

Unscrew screws -1- and nuts -2- on the pillars.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

Information

The help of another person is required.
Remove dashboard bracket.
