Preliminary Work

Remove windscreen.
> 641219 Removing and installing windscreen
Remove dashboard.
> 701819 Removing and installing dashboard
Remove steering column centre.
> 481519 Removing and installing steering column centre

Only for vehicles with Head-up display (I-no. KS1)
Remove windscreen projection control unit.
> 908619 Removing and installing windscreen projection control unit
Remove knee airbag on passenger's side.
> 697919 Removing and installing knee airbag on passenger's side
Remove front footwell outlet vent.
> 805519 Removing and installing front footwell outlet vent

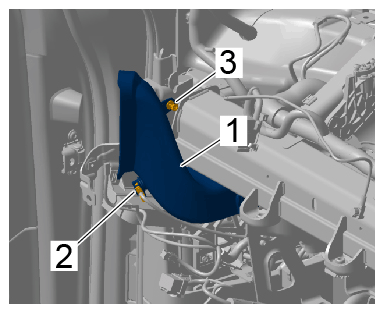

Remove air guide on driver's side -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide on driver's side
1. 7.1 Release and unplug electric plug connection -2- .
2. 7.2 Remove expanding clip -3- .
3. 7.3 Remove air guide on driver's side -1- .

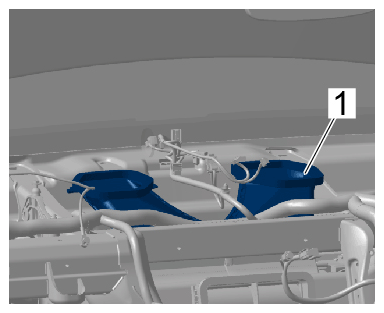

Unclip air guide on defroster -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide on defroster
Loosen fuse box at side of dashboard.
> 978409 Loosening and securing fuse box at side of dashboard
Remove wiper linkage.
> 921919 Removing and installing wiper linkage
