Preparing Connection Areas Of Body For Installing Outer Side Member (Rear Section)
- Align contact surfaces and connections of the body.
- Deburr connection points and prepare them for joining.
- Prepare connection areas > Connection areas
for joining.

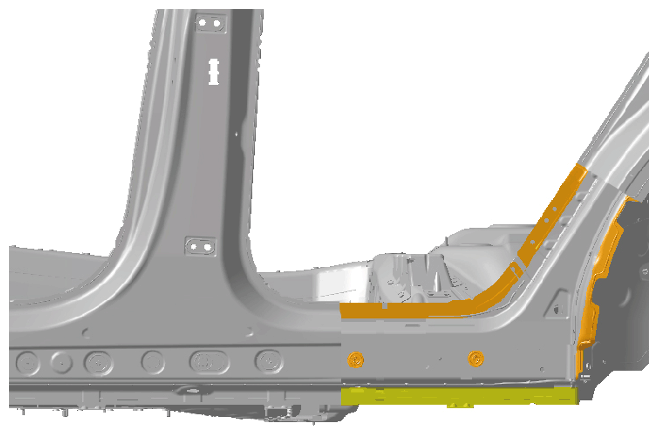

Connection areas
Yellow Bonding and resistance spot-welding
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVEOrange Bonding and riveting
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE - Prepare connection areas > Connection areas (on body side)
for applying a full aluminium weld using inert gas.

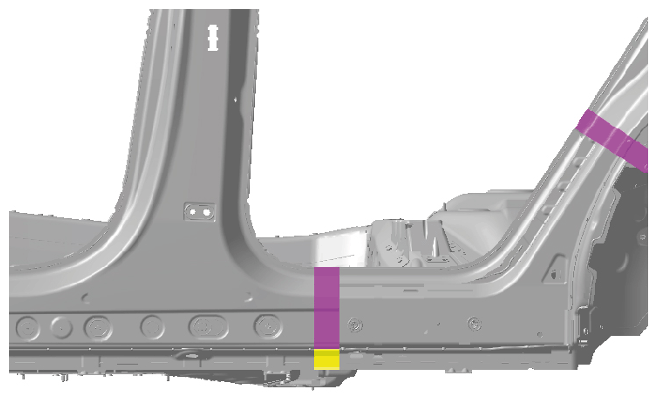

Connection areas (on body side)
Yellow Applying full veld using inert gas (steel) Magenta Applying full aluminium weld using inert gas
> 5X00IN10 WELDING ALUMINIUM
