Removing Wing Rail

Loosen joints.

1.1 Unscrew self-tapping screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

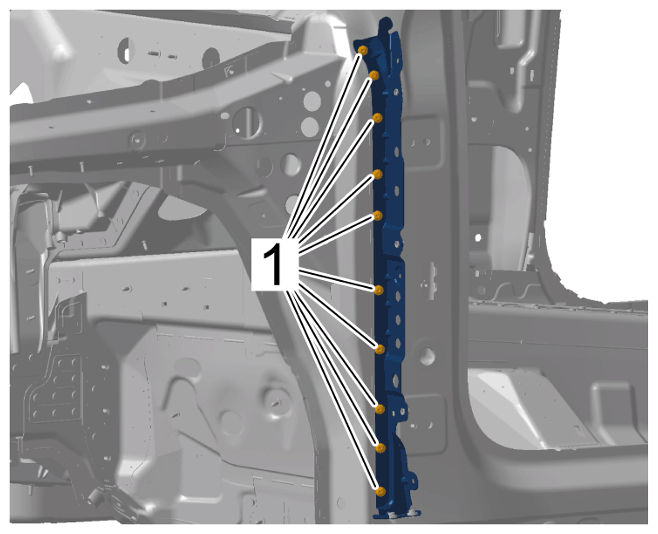

Self-tapping screws on fastening rail

Information

Punch rivets in this area are not replaced.

1.2 Grind the formed die side of the punch rivets in the area -A and B- up to the fastening rail.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Punch rivets on fastening rail

1.3 Heat bonding areas. > V.A.G 1416 - Hot-air blower

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

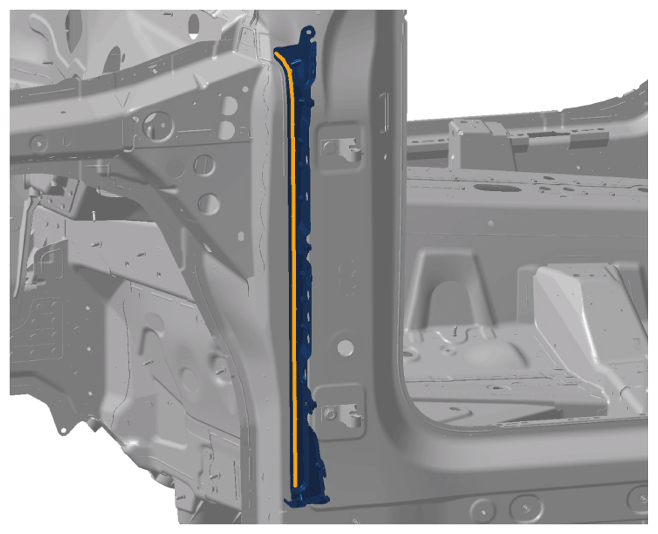

Bonding areas for fastening rails
