Preparing Connection Areas Of The Body For Installing The Outer Side Member (Front Section)
- Align contact surfaces and connections of the body.
- Deburr connection points and prepare them for joining.
- Prepare connection areas > Connection areas
for joining.

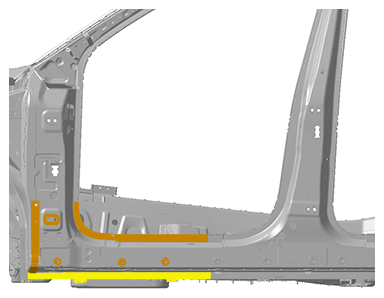

Connection areas
Yellow Bonding and resistance spot-welding
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVEOrange Bonding and riveting
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE - Prepare connection areas > Welding areas
for applying a full aluminium weld using inert gas.

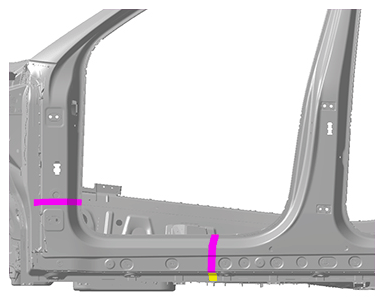

Welding areas
Yellow Applying full weld using inert gas (steel) Magenta Applying full aluminium weld using inert gas
> 5X00IN10 WELDING ALUMINIUM
