Installing Wing Fastening Rail

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of ope rations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

Install wing rail and check that it fits perfectly.
Information
- Apply adhesive evenly over the entire bonding surface.

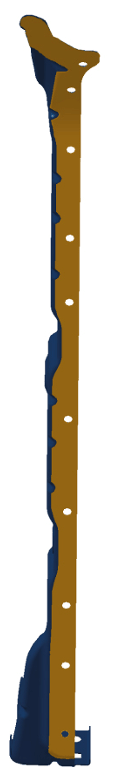

Apply adhesive to joint areas of the wing fastening rail. > Application depth 0.5 mm
> 5X00IN21 WORK WITH BODY STRUCTURAL ADHESIVE

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing rail

Information
- Apply adhesive evenly over the entire bonding surface.

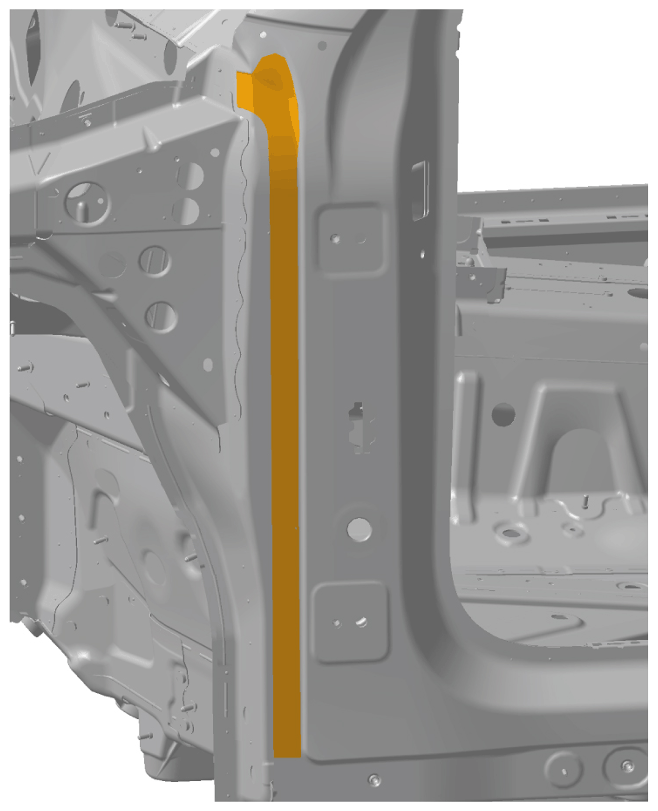

Apply adhesive on bonding area of the body. > Application depth 0.5 mm
> 5X00IN21 WORK WITH BODY STRUCTURAL ADHESIVE

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing A-pillar

Information
1. 3.1 Also apply a bead of adhesive all around the bonding surface. > Application depth 3 mm

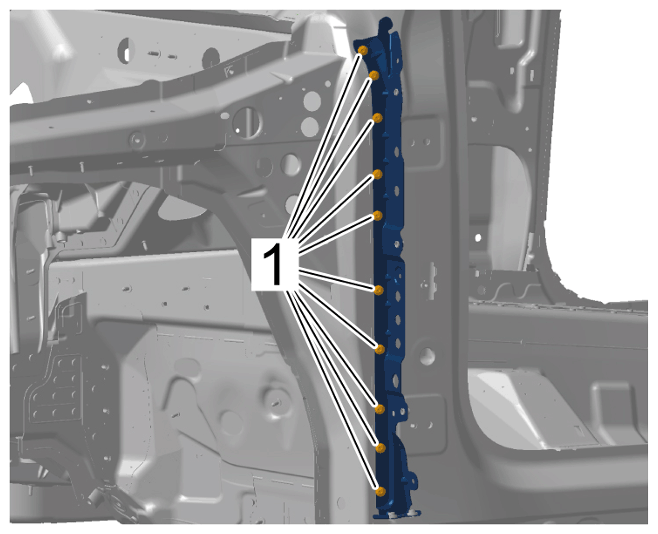

Screw in self-tapping screws -1- .
> 5X00IN24 SET SELF-TAPPING SCREWS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Self-tapping screws fastening rail
